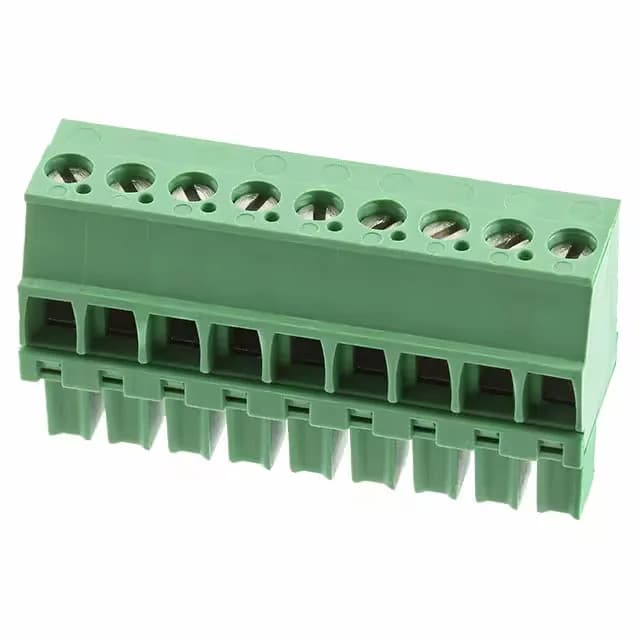

9-Position Plug at 3.81mm Pitch — Screw Clamp Termination
The 1986375-9: Termination is via screw rising cage clamp, accepting 14-30 AWG (0.05-2 mm²) wire. The rising cage pulls the conductor against a current bar, providing a gas-tight connection without damaging strands — a field-proven method for repeated terminations in maintenance environments. Mounting is free hanging (in-line) with a 270° wire entry, allowing cable routing at an angle to the mating axis, which eases wiring in tight enclosures. The side stacking feature lets multiple plugs gang together without extra hardware, simplifying multi-circuit builds.
11 A, 300 V Rating with Tin Contacts
Rated 11 A at 300 V (UL), this plug handles moderate power loads common in terminal block applications. The tin contact mating finish is suited for applications with infrequent mating cycles — tin oxidises over time but the rising cage clamp wipes the contact surface on each termination, maintaining low resistance.
