TE Connectivity AMP Connectors 1986469-3
MPN1986469-3
Active

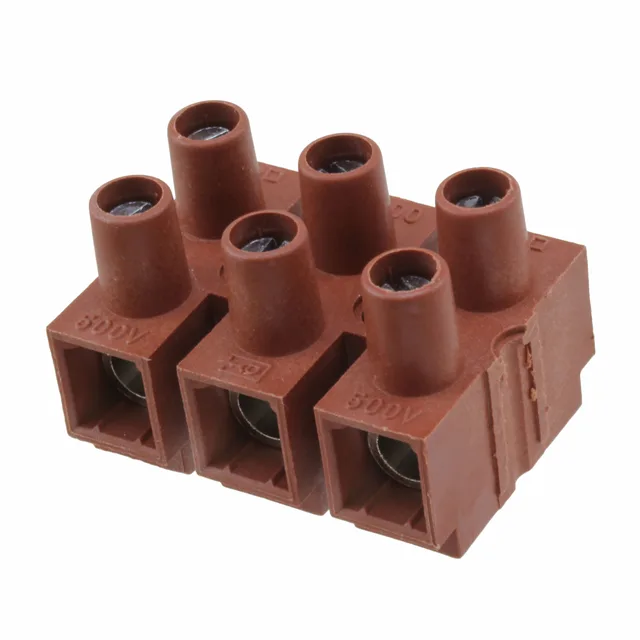

CONN TERM STRIP 3CIRC 0.571"
$18.07Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTSB2000, Buchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TSB2000, Buchanan |
| Barrier type | Enclosed |
| Mounting | Chassis, Panel |
| Terminal block type | Eurostyle Terminal Strip |
| Voltage rating | 600V |
| Current rating | 65A |
| Wire gauge | 6-14 AWG |
| Terminal screw finish | Zinc, Hexavalent Chromate |
| Number of wire entries | 6 |
| Terminal screw material | Steel |
| Operating temperature | 150°C |
| Color | Brown |
All specifications
| Parameter | Value |
|---|---|
| Material - insulation | Polyamide (PA6), Nylon 6 |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.571\" (14.50mm) |
| Package | Bulk |
| Rows | 2 |
| Top termination | Screws |
| Bottom termination | Closed |
| Number of circuits | 3 |
