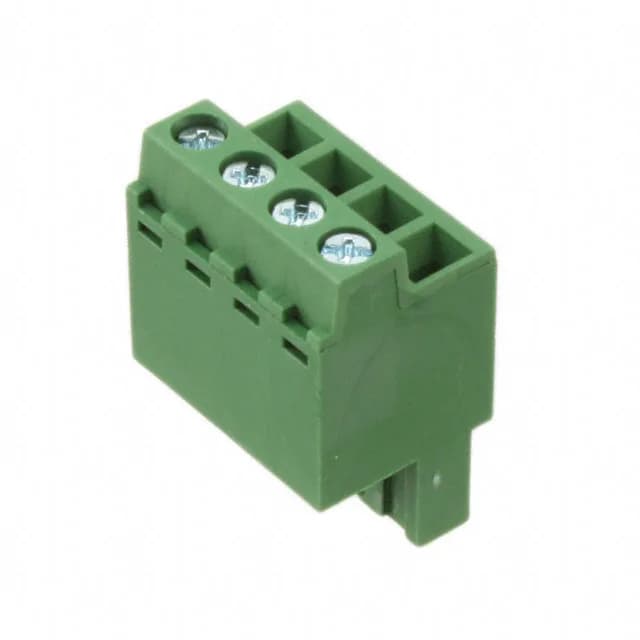

TE Connectivity AMP Connectors plug, female sockets, order code 1986484-4, 4 positions, single level, 0.200" (5.08mm) pitch, 16 A, 300 V, screw-pressure clip termination, free hanging, green PA66 housing, bulk.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 16 A |
| Plug wire entry | 180° |
| Wire strip length | 10mm |
| Wire gauge or range - AWG | 14-24 AWG |
| Wire gauge or range - mm2 | 0.2-2mm² |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Parameter | Value |
|---|---|
| Insulation height | 0.587\" (14.91mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Torque - screw | 0.79 Nm (7.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Pressure Clip |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Tin |
The 1986484-4 is a 4-position plug with female sockets from TE Connectivity AMP Connectors, part of a free-hanging screw-termination series. Rated 16 A at 300 V, it accepts 14-24 AWG wire with a 10 mm strip length and uses a screw-pressure clip for termination.
The plug accepts 14-24 AWG wire (0.2-2 mm²) with a 10 mm strip length.
