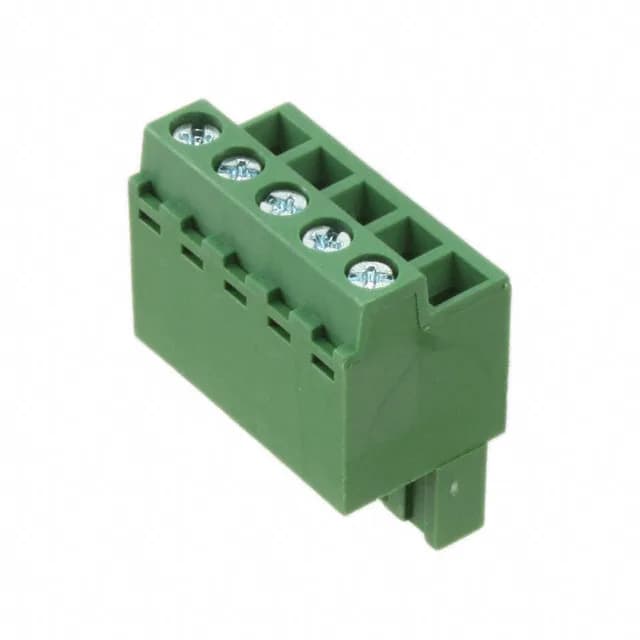

TE Connectivity AMP Connectors plug, order code 1986484-5, 5 positions, single level, 0.200" (5.08mm) pitch, 16 A, 300 V, tin-plated phosphor bronze contacts, free-hanging, screw-clamp termination, green PA66 housing.
TE 1986484-5 Plug, 5 Pos 5.08mm Screw-Clamp
MPN1986484-5
Active
TE Connectivity AMP Connectors plug, order code 1986484-5, 5 positions, single level, 0.200" (5.08mm) pitch, 16 A, 300 V, tin-plated phosphor bronze contacts, free-hanging, screw-clamp termination, green PA66 housing.
$5.1026Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 16 A |
| Plug wire entry | 180° |
| Wire strip length | 10mm |
| Wire gauge or range - AWG | 14-24 AWG |
| Wire gauge or range - mm2 | 0.2-2mm² |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.587\" (14.91mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Torque - screw | 0.79 Nm (7.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Pressure Clip |
| Positions | 5 |
| Positions per level | 5 |
| Contact mating finish | Tin |
Product details
Frequently asked questions
Who supplies 1986484-5 and how is it quoted for volume purchases?
TE Connectivity AMP Connectors is the manufacturer. The part is quoted to order against the BOM quantity; availability is confirmed at RFQ.
What is 1986484-5's listed type?
The listed type is Plug, Female Sockets.
What is 1986484-5's listed color?
The housing color is Green.
What compliance documentation does TE Connectivity AMP Connectors provide for 1986484-5?
The housing material is PA66 rated UL94 V-0.
