Screw pressure-clip termination, free-hanging
The 1986484-9 is a 9-position plug with female sockets from TE Connectivity AMP Connectors, terminated via a screw pressure-clip that secures 14-24 AWG wire stripped to 10 mm.

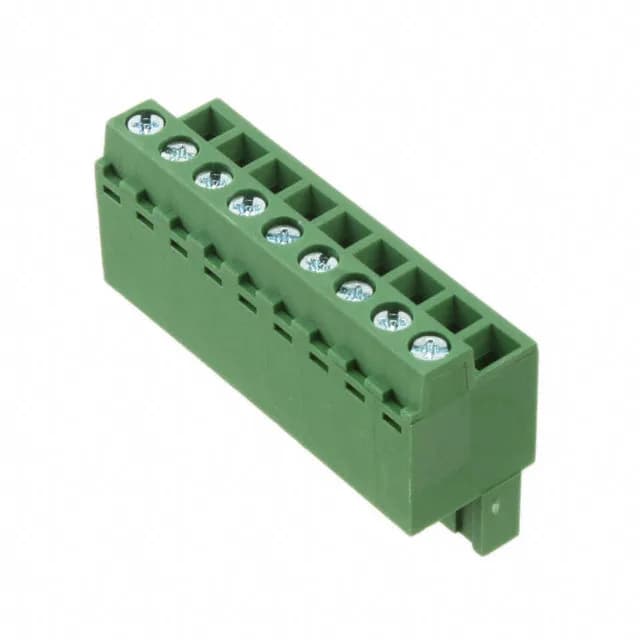

TE Connectivity 1986484-9 Plug, 9 Pos, 5.08mm
MPN1986484-9
Active
TE Connectivity AMP Connectors plug, female sockets, order code 1986484-9, 9 positions, single level, 0.200" (5.08mm) pitch, 16 A, 300 V, tin-plated phosphor bronze contacts, free-hanging, screw pressure-clip termination.
$14.9400Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 16 A |
| Plug wire entry | 180° |
| Wire strip length | 10mm |
| Wire gauge or range - AWG | 14-24 AWG |
| Wire gauge or range - mm2 | 0.2-2mm² |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.587\" (14.91mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Torque - screw | 0.79 Nm (7.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Pressure Clip |
| Positions | 9 |
| Positions per level | 9 |
| Contact mating finish | Tin |
Product details
Frequently asked questions
What is the wire gauge range for the 1986484-9 screw termination?
The screw pressure-clip termination accepts 14-24 AWG (0.2-2 mm²) wire with a 10 mm strip length.
