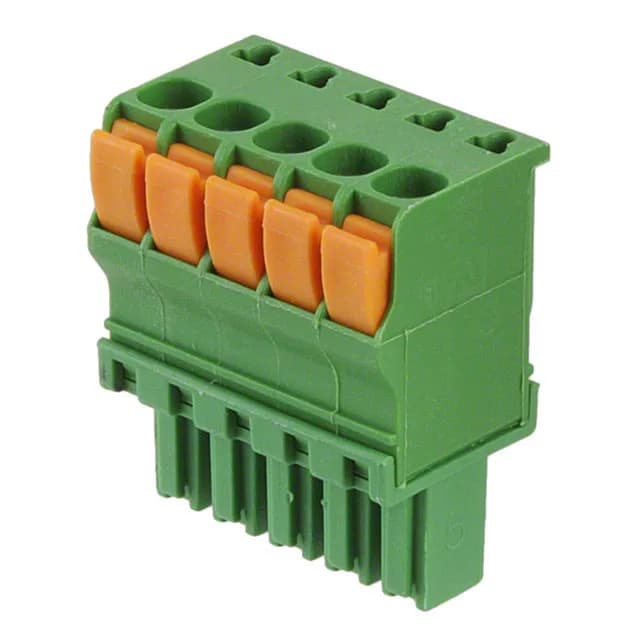

5-position plug with push-in spring termination
The 1986692-5 is a 5-position plug from TE Connectivity AMP Connectors, using a screwless push-in spring termination for 14-30 AWG wire (0.05-2 mm²).
TE 1986692-5 Plug, 5 Pos 3.50mm, Push-In Spring
MPN1986692-5
Active
TE Connectivity AMP Connectors plug, order code 1986692-5, 5 positions, single level, 0.138" (3.50mm) pitch, 9 A, 300 V, tin-plated mating contacts, free-hanging (in-line), screwless push-in spring termination, bulk.
$1.4200Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 9 A |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 14-30 AWG |
| Wire gauge or range - mm2 | 0.05-2mm² |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.459\" (11.66mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Features | Side Stacking |
| Number of levels | 1 |
| Termination style | Screwless - Leg Spring, Push-In Spring |
| Positions | 5 |
| Positions per level | 5 |
| Contact mating finish | Tin |
