TE Connectivity AMP Connectors 1986713-3
MPN1986713-3
Active

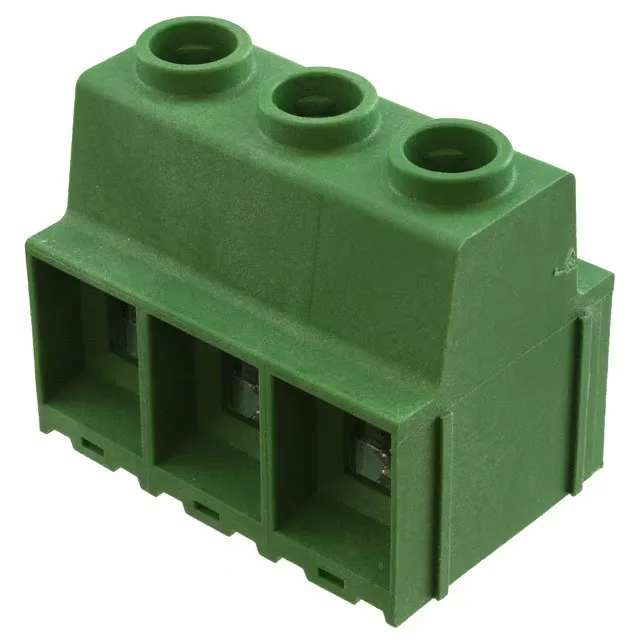

TERM BLK 3P SIDE ENTRY 15MM PCB
$35.63Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Voltage | 600 V |
| Current | 130 A |
| Wire gauge | 1-20 AWG |
| Wire termination | Screw |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Housing material | Polyamide (PA), Nylon |
| Clamp material - plating | Steel - Tin Plated |
| Screw material - plating | Steel - Nickel Plated |
| Contact material - plating | Copper Alloy - Tin Plated |
| Pitch | 0.591\" (15.00mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Interlocking (Side) |
| Screw thread | M5 |
| Torque - screw | 2.1-2.5 Nm (1.5-1.8 LbIn) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 3 |
