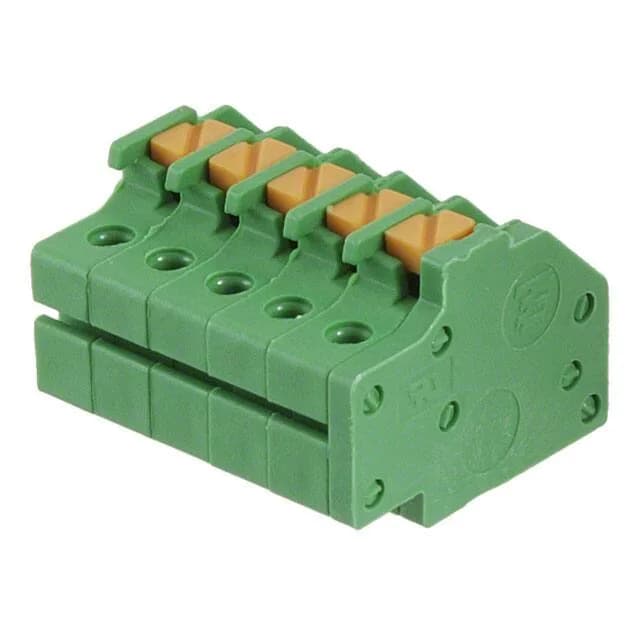

TE Connectivity AMP Connectors 1986716-5
MPN1986716-5
Active
$3.6580Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug for Unshrouded Header |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 150 V |
| Current - UL | 2 A |
| Plug wire entry | 90° |
| Wire strip length | 8.5-10mm |
| Wire gauge or range - AWG | 16-20 AWG |
| Wire gauge or range - mm2 | 0.5-1.3mm² |
| Operating temperature | -40°C~110°C |
| Color | Green |
| Contact material | Steel, Stainless |
| Housing material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.492\" (12.50mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Features | Push Button Actuated, Side Stacking |
| Number of levels | 1 |
| Termination style | Screwless - Leg Spring, Push-In Spring |
| Positions | 5 |
| Positions per level | 5 |
| Contact mating finish | Tin |
