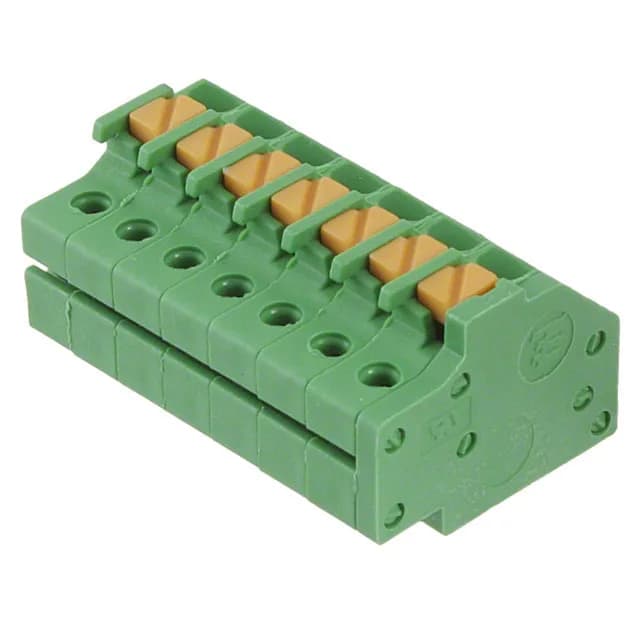

TE Connectivity AMP Connectors plug for unshrouded header, order code 1986716-7, 7 positions, 1 level, 3.50 mm pitch, 2 A, 150 V, tin-plated steel contacts, free hanging, screwless push-in spring termination, bulk.
| Parameter | Value |
|---|---|
| Type | Plug for Unshrouded Header |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 150 V |
| Current - UL | 2 A |
| Plug wire entry | 90° |
| Wire strip length | 8.5-10mm |
| Wire gauge or range - AWG | 16-20 AWG |
| Wire gauge or range - mm2 | 0.5-1.3mm² |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Steel, Stainless |
| Housing material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Insulation height | 0.492\" (12.50mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Features | Push Button Actuated, Side Stacking |
| Number of levels | 1 |
| Termination style | Screwless - Leg Spring, Push-In Spring |
| Positions | 7 |
| Positions per level | 7 |
| Contact mating finish | Tin |
The 1986716-7 is a 7-position plug for unshrouded headers from TE Connectivity AMP Connectors, with push-button actuated side stacking and a 90° wire entry for tight harness routing. It accepts 16-20 AWG (0.5-1.3 mm²) wire terminated via screwless leg-spring push-in contacts rated 2 A at 150 V, with a tin mating finish on the steel contacts.
