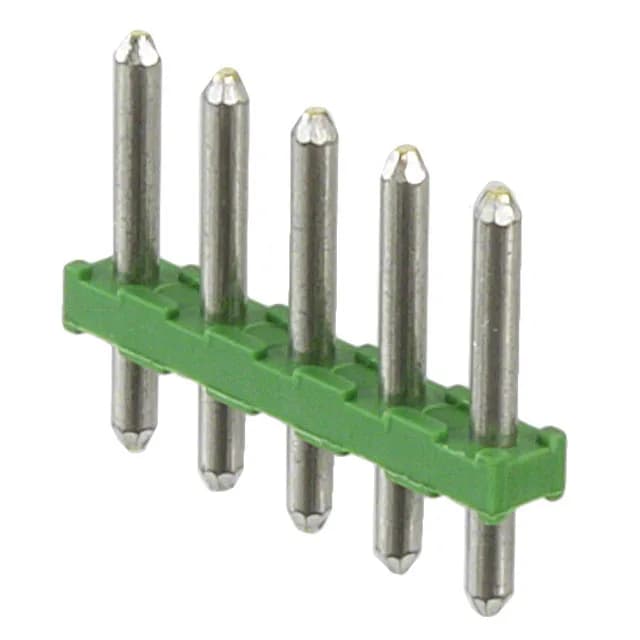

TE Connectivity AMP Connectors 1986717-5 — 5-position single-row unshrouded header, 3.50 mm pitch, through-hole solder termination, tin-plated copper alloy contacts, UL94 V-0 green nylon housing.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Unshrouded |
| Mounting | Through Hole |
| Voltage - UL | 150 V |
| Current - UL | 2 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.079\" (2.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 5 |
| Positions per level | 5 |
| Contact mating finish | Tin |
The 1986717-5: The tin-plated contact finish is economical but wears faster than gold; expect fewer than 50 mating cycles in typical use. That covers most indoor equipment and industrial enclosures where the connector sits inside a protected panel.
Vertical orientation means the pins stand perpendicular to the PCB — no right-angle routing needed.
This is an unshrouded male pin header. It mates with any 3.50 mm pitch, 5-position female receptacle housing that accepts the 0.138" (3.50 mm) contact tail length. The mating half must be aligned manually — no polarization key guides the insertion.
5 positions, single row, all populated. The positions per level is also 5.
