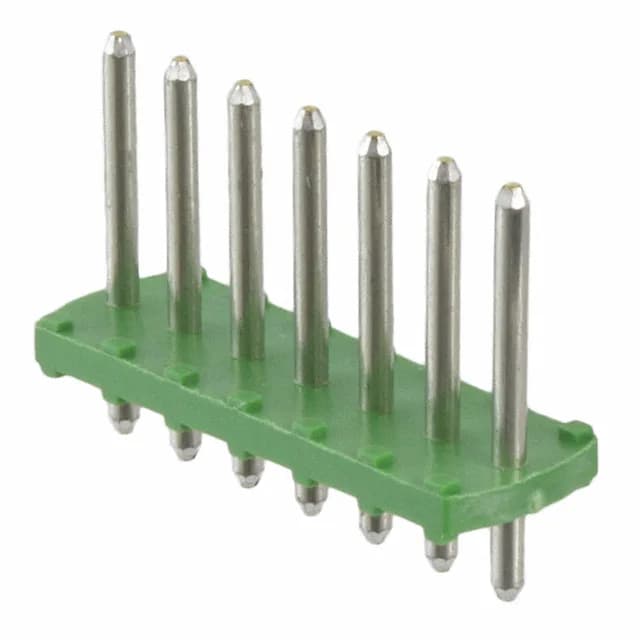

TE Connectivity AMP Connectors 1986718-7, 7-position single-row unshrouded male pin header, 0.138" (3.50mm) pitch, vertical through-hole solder termination, tin-plated copper alloy contacts, UL94 V-0 green nylon housing, rated 2 A at 150 V.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Unshrouded |
| Mounting | Through Hole |
| Voltage - UL | 150 V |
| Current - UL | 2 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.094\" (2.40mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 7 |
| Positions per level | 7 |
| Contact mating finish | Tin |
The 1986718-7: The vertical orientation keeps the mated assembly standing upright off the board, which matters for z-height clearance inside an enclosure.
The 7-position single-row layout is common in the TE Connectivity AMP portfolio; the base product number 1986718 covers the series.
No official pin-compatible replacement is listed for this part number. Confirm the mating receptacle and board footprint before substituting.
