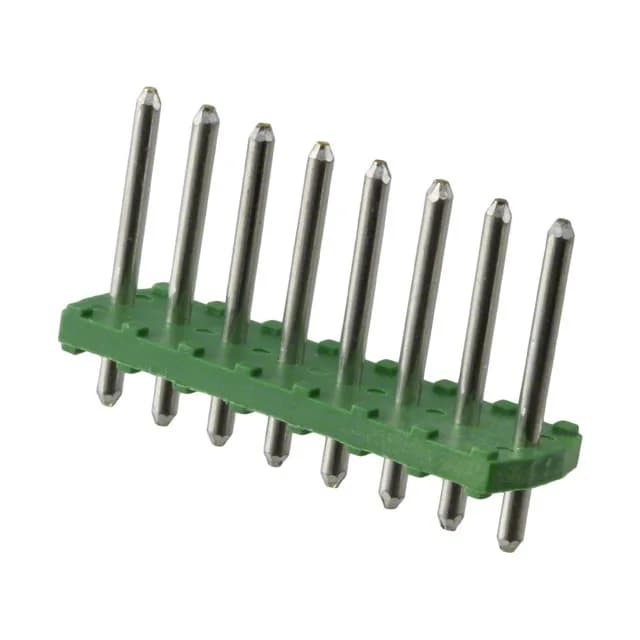

TE Connectivity AMP Connectors header, order code 1986718-8, 8 positions, single level, 0.138" (3.50mm) pitch, 2 A, 150 V, through hole, vertical, solder termination, tin-plated mating contacts.
TE 1986718-8 Header, 8 Pos, 3.50mm, Unshrouded
MPN1986718-8
Active
TE Connectivity AMP Connectors header, order code 1986718-8, 8 positions, single level, 0.138" (3.50mm) pitch, 2 A, 150 V, through hole, vertical, solder termination, tin-plated mating contacts.
$2.4581Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Unshrouded |
| Mounting | Through Hole |
| Voltage - UL | 150 V |
| Current - UL | 2 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.094\" (2.40mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 8 |
| Positions per level | 8 |
| Contact mating finish | Tin |
Product details
Frequently asked questions
What compliance documentation is available for the 1986718-8?
The housing material is rated UL94 V-0. RoHS and REACH compliance documentation is available from TE Connectivity AMP Connectors upon request.
