TE Connectivity AMP Connectors 1986722-7 — Pin Headers, Sockets & Housings

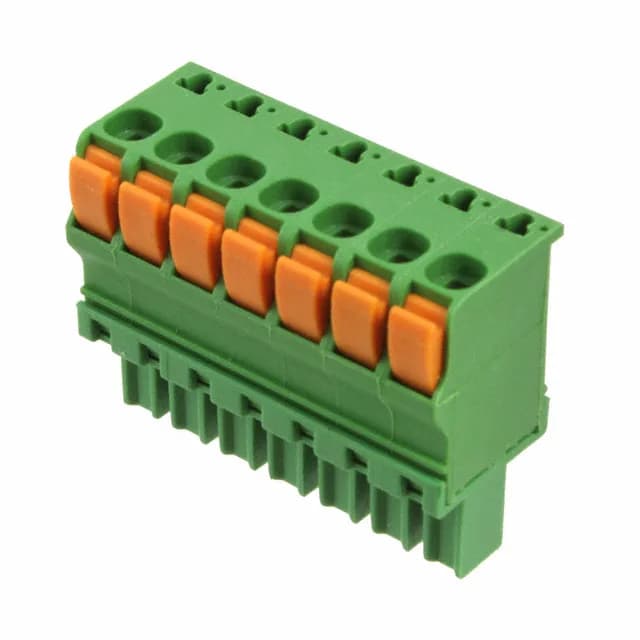

TE 1986722-7 Plug, Female Sockets, 7 Pos 3.81mm

MPN1986722-7
Active

TE Connectivity AMP Connectors plug, female sockets, order code 1986722-7, 7 positions, single level, 0.150" (3.81mm) pitch, 9 A, 300 V, tin mating finish, free hanging, screwless push-in spring termination, bulk.

$10.1693Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1986722-7 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1986722-7 key specifications
ParameterValue
TypePlug, Female Sockets
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL9 A
Plug wire entry180°
Wire gauge or range - AWG14-30 AWG
Wire gauge or range - mm20.05-2mm²
Operating temperature-40°C ~ 110°C
ColorGreen
Contact materialCopper Alloy
Housing materialPolyamide (PA), Nylon
Insulation height0.459\" (11.66mm)

All specifications

1986722-7 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
Pitch0.150\" (3.81mm)
PackageBulk
FeaturesSide Stacking
Number of levels1
Termination styleScrewless - Leg Spring, Push-In Spring
Positions7
Positions per level7
Contact mating finishTin

Product details

Push-in spring termination, free-hanging 7-way

The 1986722-7 is a 7-position plug with female sockets from TE Connectivity AMP Connectors, terminated via screwless leg-spring push-in contacts for 14-30 AWG (0.05-2mm²) solid or stranded wire.

Side-stacking and wire-entry layout

Side stacking allows adjacent plugs to interlock without a separate bridge, forming a continuous terminal block. The 180° wire entry aligns the cable axis with the plug body, simplifying routing in shallow enclosures. Insulation height is 0.459" (11.66mm); the free-hanging in-line mount eliminates panel cutouts and speeds field replacement.

Frequently asked questions

What wire sizes does the push-in spring accept?

The termination accepts 14-30 AWG solid or stranded wire, corresponding to 0.05-2mm². No ferrule is required for solid wire.

What is the closest pin-compatible alternative to 1986722-7 in this family?

No pin-compatible alternative is listed in the same series. The 1986722-7 is a single-source part; confirm the BOM position count and mating header before ordering.
