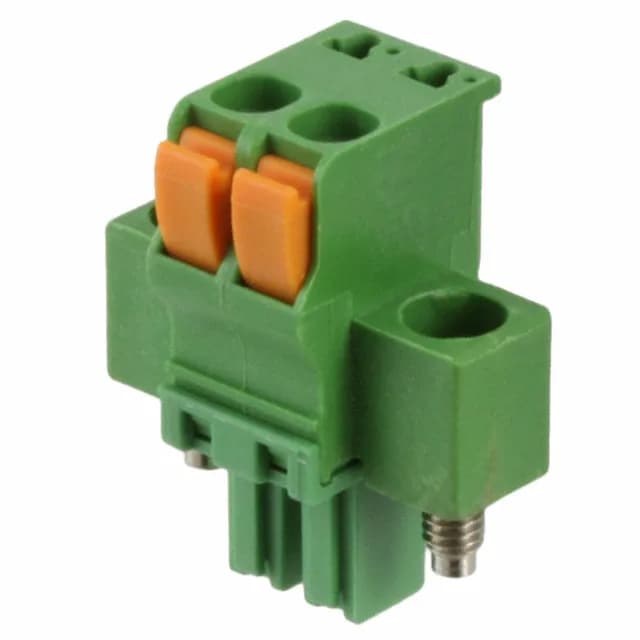

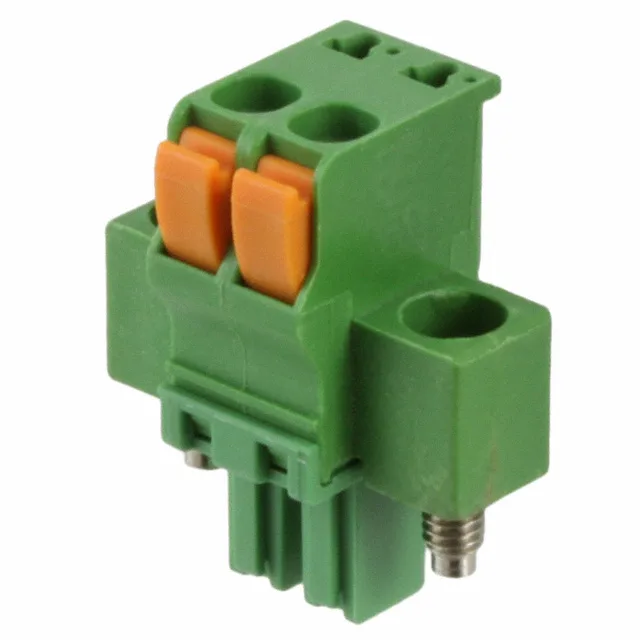

TE Connectivity AMP Connectors plug, order code 1986724-2, 2 positions, 0.150" (3.81mm) pitch, 9 A, 300 V, tin-plated mating contacts, free hanging, push-in spring termination, bulk.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 9 A |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 14-30 AWG |
| Wire gauge or range - mm2 | 0.05-2mm² |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.459\" (11.66mm) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
| Package | Bulk |
| Features | Mating Flange |
| Number of levels | 1 |
| Termination style | Screwless - Leg Spring, Push-In Spring |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |
The 1986724-2 is a 2-position plug from TE Connectivity AMP Connectors, using a push-in spring termination that accepts 14-30 AWG (0.05-2 mm²) solid or stranded wire without a screwdriver. Rated 9 A at 300 V, the plug carries a tin-plated mating finish and a UL94 V-0 polyamide housing in green, with a mating flange for secure locking.
