TE Connectivity AMP Connectors 1986724-6 — Pin Headers, Sockets & Housings

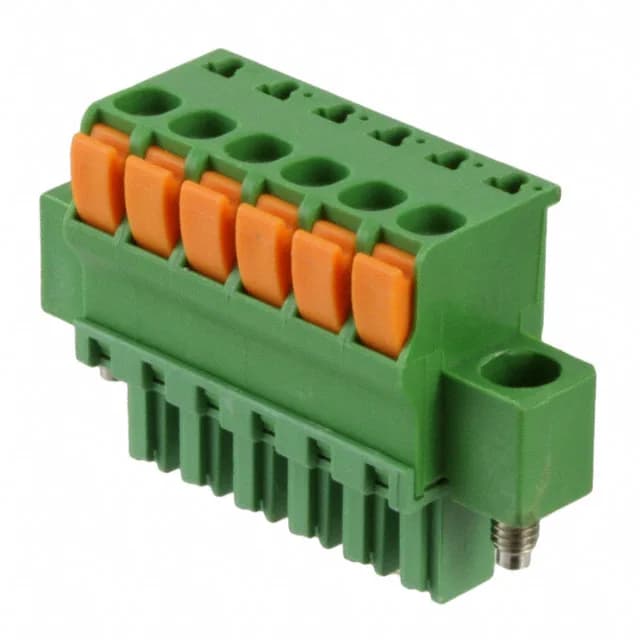

TE 1986724-6 Plug, Female Sockets, 6 Pos, 3.81mm, Obsolete

MPN1986724-6
Obsolete

TE Connectivity AMP Connectors plug, female sockets, order code 1986724-6, 6 positions, single level, 0.150" (3.81mm) pitch, 9 A, 300 V, tin-plated mating finish, free hanging, 180° wire entry, push-in spring termination, bulk.

$11.8500Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1986724-6 key specifications
ParameterValue
TypePlug, Female Sockets
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL9 A
Plug wire entry180°
Wire gauge or range - AWG14-30 AWG
Wire gauge or range - mm20.05-2mm²
Operating temperature-40°C ~ 110°C
ColorGreen
Contact materialCopper Alloy
Housing materialPolyamide (PA), Nylon
Insulation height0.459\" (11.66mm)

All specifications

1986724-6 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
Pitch0.150\" (3.81mm)
PackageBulk
FeaturesMating Flange
Number of levels1
Termination styleScrewless - Leg Spring, Push-In Spring
Positions6
Positions per level6
Contact mating finishTin

Product details

6-position push-in plug, 3.81 mm pitch

The 1986724-6 is a 6-circuit plug from TE Connectivity's 1986724 series of terminal block plugs, with female sockets accepting 14-30 AWG (0.05-2 mm²) solid or stranded wire via push-in spring termination.

Obsolete — no direct replacement on record

TE Connectivity AMP Connectors lists the 1986724-6 as Obsolete. For a current-production alternative, evaluate other 3.81 mm pitch terminal block plugs in the same family; confirm the position count, wire range, and termination style match the BOM requirement.

Frequently asked questions

What is the closest pin-compatible alternative to 1986724-6?

No pin-compatible replacement is listed by the manufacturer. A functionally similar plug from the same series with 3.81 mm pitch and push-in termination should be evaluated against the circuit count, wire range, and voltage rating.

What compliance documentation does TE provide for 1986724-6?

RoHS and REACH compliance documentation is typically available from TE Connectivity for this part number; confirm at time of order.
