TE Connectivity AMP Connectors 1986725-3 — Pin Headers, Sockets & Housings

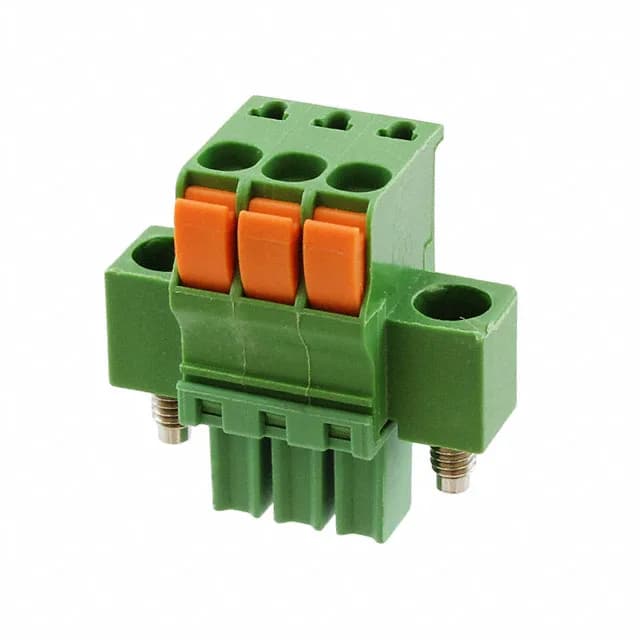

TE 1986725-3 Plug, Female Sockets, 3 Pos, 3.50mm, Obsolete

MPN1986725-3
Obsolete

TE Connectivity AMP Connectors plug, female sockets, order code 1986725-3, 3 positions, single level, 0.138" (3.50mm) pitch, 9 A, 300 V, tin-plated copper alloy contacts, free hanging, push-in spring termination, bulk.

$2.5900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1986725-3 key specifications
ParameterValue
TypePlug, Female Sockets
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL9 A
Plug wire entry180°
Wire gauge or range - AWG14-30 AWG
Wire gauge or range - mm20.05-2mm²
Operating temperature-40°C ~ 110°C
ColorGreen
Contact materialCopper Alloy
Housing materialPolyamide (PA), Nylon
Insulation height0.459\" (11.66mm)

All specifications

1986725-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
Pitch0.138\" (3.50mm)
PackageBulk
FeaturesMating Flange
Number of levels1
Termination styleScrewless - Leg Spring, Push-In Spring
Positions3
Positions per level3
Contact mating finishTin

Product details

Three-position plug, push-in termination

The 1986725-3 is a 3-position plug with female sockets from TE Connectivity AMP Connectors, terminated via screwless push-in spring — wire sizes from 14 to 30 AWG (0.05–2 mm²) insert straight in without a tool. Rated 9 A at 300 V with tin-plated mating contacts and a UL94 V-0 polyamide housing; the mating flange provides retention against pull-off in free-hanging installations.

Discontinued — sourcing per RFQ

No pin-compatible replacement is documented in the same series.

Frequently asked questions

What compliance documentation does TE Connectivity AMP Connectors provide for 1986725-3?

RoHS and REACH compliance status is not listed in the available records.
