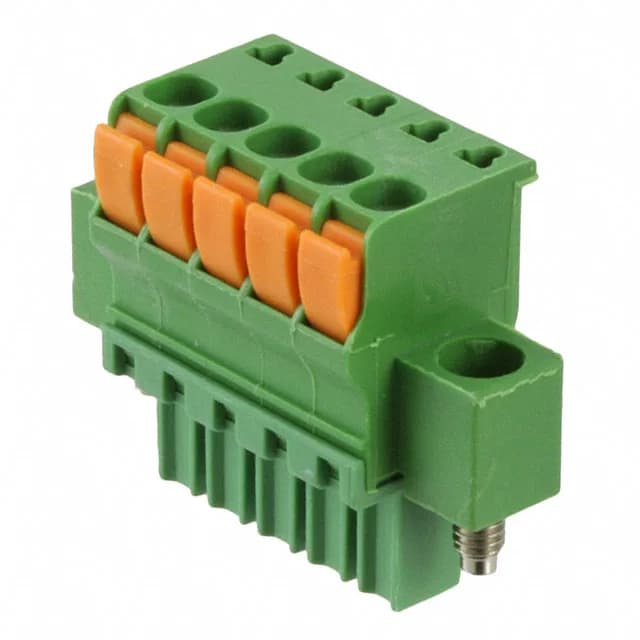

TE Connectivity plug, order code 1986725-5, Type Plug, Female Sockets, 5 positions, 1 level, 0.138" (3.50mm) pitch, 9 A, 300 V, green, push-in spring termination, free hanging.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 9 A |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 14-30 AWG |
| Wire gauge or range - mm2 | 0.05-2mm² |
| Operating temperature | -40°C~110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.459\" (11.66mm) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Features | Mating Flange |
| Number of levels | 1 |
| Termination style | Screwless - Leg Spring, Push-In Spring |
| Positions | 5 |
| Positions per level | 5 |
| Contact mating finish | Tin |
The 1986725-5 is a 5-position plug with female sockets from the TE Connectivity 1986725 series, terminated via screwless leg spring push-in spring — wire sizes from 14-30 AWG (0.05-2 mm²) insert directly without a screwdriver. Rated 9 A at 300 V, the plug carries tin-plated copper alloy contacts and a green polyamide (PA) housing rated UL94 V-0.
A board spin or alternative series evaluation is required.
The housing material is rated UL94 V-0.
