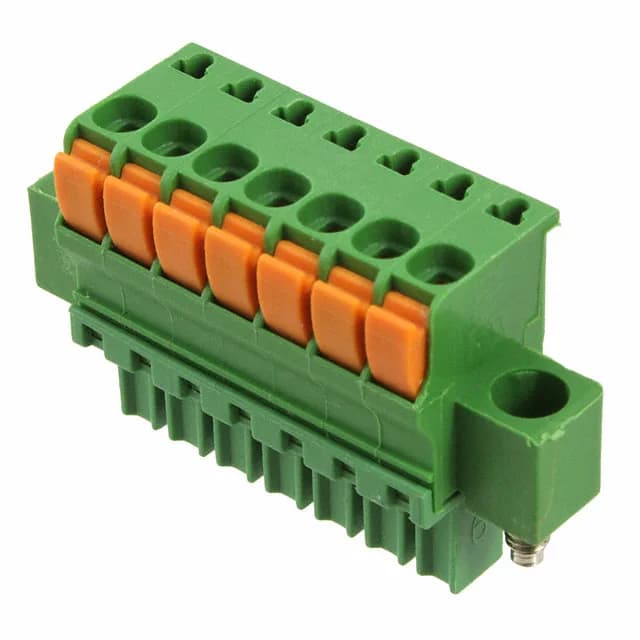

TE Connectivity AMP Connectors plug, female sockets, order code 1986725-7, 7 positions, single level, 3.50 mm pitch, 9 A, 300 V, tin-plated mating contacts, free hanging, push-in spring termination, bulk.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 9 A |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 14-30 AWG |
| Wire gauge or range - mm2 | 0.05-2mm² |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.459\" (11.66mm) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Features | Mating Flange |
| Number of levels | 1 |
| Termination style | Screwless - Leg Spring, Push-In Spring |
| Positions | 7 |
| Positions per level | 7 |
| Contact mating finish | Tin |
The 1986725-7 is a 7-circuit plug from TE's 1986725 series, terminated via push-in spring clamp — no screw torque, no tool required for solid or ferruled stranded wire. Rated 9 A at 300 V with tin-plated mating contacts, the plug accepts 14–30 AWG (0.05–2 mm²) and houses in a green UL94 V-0 polyamide shell with a mating flange.
Screwless leg spring, push-in spring termination — accepts solid or ferruled stranded wire from 14 AWG to 30 AWG (0.05 mm² to 2 mm²). No screwdriver required for the wire entry.
The 1986725-7 is a plug, female sockets type in a green housing.
