3-position push-in plug
The 1986726-3 is a 3-position plug with female sockets from the 1986726 series, using push-in spring termination for 14-30 AWG (0.05-2 mm²) solid or ferruled stranded wire.

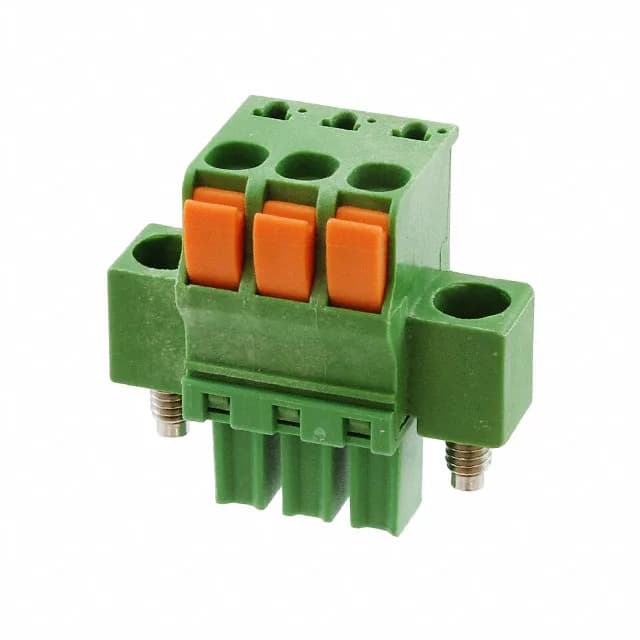

1986726-3 Plug, Female Sockets, 3 Pos, 3.81mm, Obsolete
MPN1986726-3
Obsolete
Plug, Female Sockets, order code 1986726-3, 3 positions, 1 level, 0.150" (3.81mm) pitch, 9 A, 300 V, tin-plated mating contacts, free hanging, 180° wire entry, push-in spring termination, bulk.
$3.0100Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 9 A |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 14-30 AWG |
| Wire gauge or range - mm2 | 0.05-2mm² |
| Operating temperature | -40°C~110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.459\" (11.66mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
| Package | Bulk |
| Features | Mating Flange |
| Number of levels | 1 |
| Termination style | Screwless - Leg Spring, Push-In Spring |
| Positions | 3 |
| Positions per level | 3 |
| Contact mating finish | Tin |
Product details
Frequently asked questions
What compliance documentation is available for 1986726-3?
RoHS and REACH compliance documentation is available from the manufacturer or distributor upon request.
