Board-to-board breakaway header, 34 positions

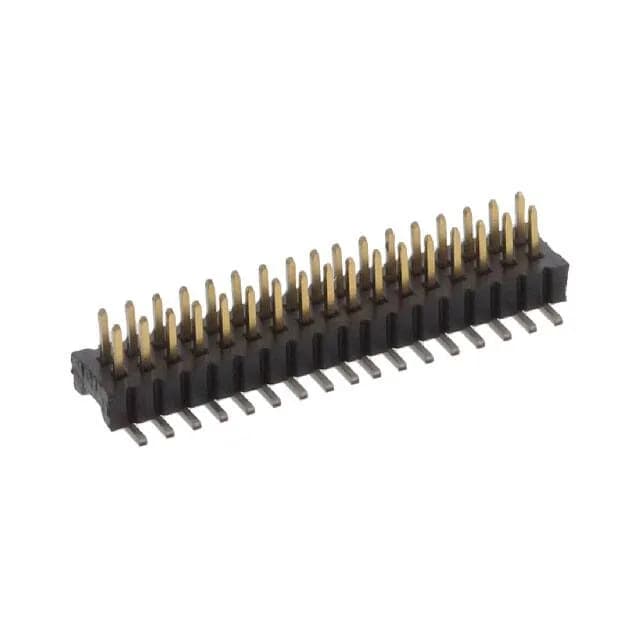

The 1MM-HU-D17-VS-00-F-TBP is the 34-circuit member of TE's AMPMODU 1MM breakaway header line, unshrouded for board-to-board stacking. Gold-plated mating contacts rated 1 A at 30 VAC, surface-mount solder termination, dual-row 1.00 mm pitch with 1.00 mm row spacing.
Position count and pitch across the series
The 34-position 1MM-HU-D17-VS-00-F-TBP uses the same 1.00 mm pitch and dual-row layout as the rest of the AMPMODU 1MM series — match the position count to the circuit count on the board; the footprint and row spacing are shared across the family.
