40-position breakaway header at 1.00 mm pitch

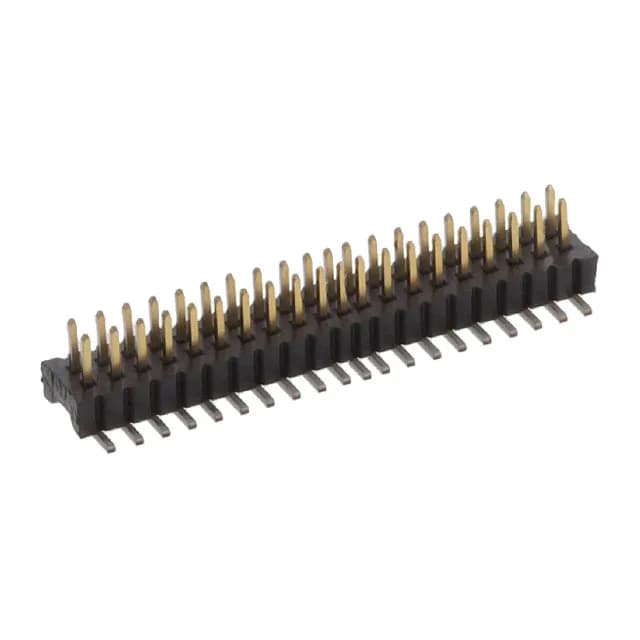

The 1MM-HU-D20-VS-00-F-TBP is the 40-position dual-row member of TE Connectivity's AMPMODU 1MM breakaway header series.
Unshrouded push-pull mating and SMT footprint
Unshrouded push-pull fastening with a 0.083" (2.10 mm) mating pin length — the header mates with AMPMODU 1MM receptacles without a latch, relying on the board-to-board alignment for retention. Surface-mount solder termination with pick-and-place compatible packaging (Box) supports automated assembly; the 0.039" (1.00 mm) row spacing keeps the footprint within a single routing channel per row.
LCP housing with UL94 V-0 and wide temperature range
Liquid Crystal Polymer (LCP) insulation rated UL94 V-0, with an operating range of -55°C to 125°C — the housing withstands reflow profiles and high-temperature environments without deformation.
