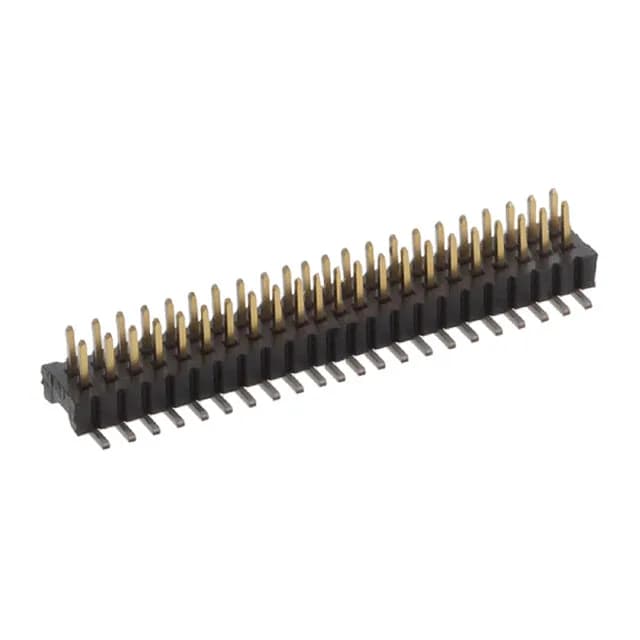

The 1MM-HU-D22-VS-00-H-TBP: That matters for routing density on the PCB: a 44-position connector at this pitch occupies roughly 21.5 mm of board edge, leaving room for adjacent components in a compact layout. The square pins measure 0.083" (2.10 mm) mating length — enough for a positive wipe with a standard AMPMODU 1MM socket.
1 A per Contact, 30 µinch Gold — Signal Duty with Reconnect Margin
Surface Mount with Pick-and-Place — Automated Assembly Ready
Termination is surface mount solder, and the part is packaged in a box with pick-and-place features. That means the header is designed for vacuum-nozzle handling and reflow soldering — no hand-solder rework in production. The insulation height is 1.50 mm (0.059"), which sets the z-height clearance under the component after reflow.
