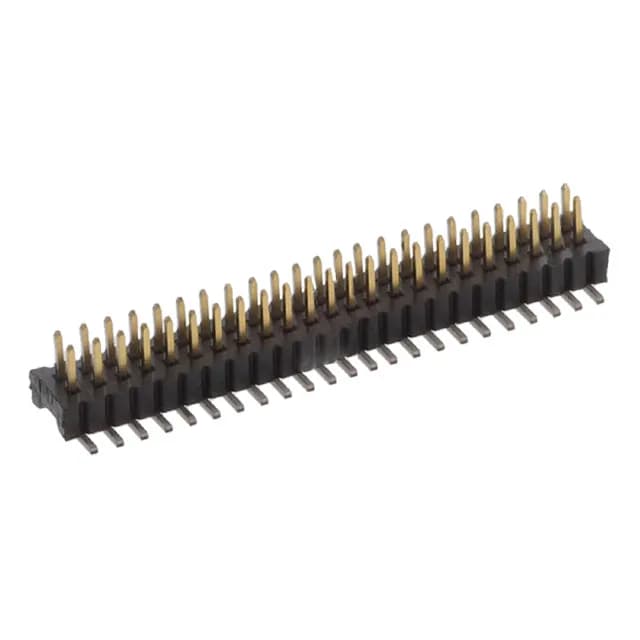

TE Connectivity AMP Connectors AMPMODU 1MM header, order code 1MM-HU-D23-VS-00-F-TBP, 46 positions, dual row, 1.00 mm pitch, 1 A, 30 VAC, gold-plated mating contacts, surface-mount, solder termination, unshrouded breakaway.
| Parameter | Value |
|---|---|
| Series | AMPMODU 1MM |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 30VAC |
| Current rating | 1A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Box |
| Features | Pick and Place |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.039\" (1.00mm) |
| Positions | 46 |
| Row spacing - mating | 0.039\" (1.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.083\" (2.10mm) |
| Contact finish thickness - post | 12.0µin (0.30µm) |
| Contact finish thickness - mating | 3.94µin (0.100µm) |
The 1MM-HU-D23-VS-00-F-TBP is the 46-position member of TE's AMPMODU 1MM header line, a dual-row unshrouded breakaway design on 1.00 mm pitch. Gold-plated mating contacts rated 1 A at 30 VAC, with a 0.083" (2.10 mm) mating length for compact board-to-board stacking.
The style is Board to Board and the series is AMPMODU 1MM.
