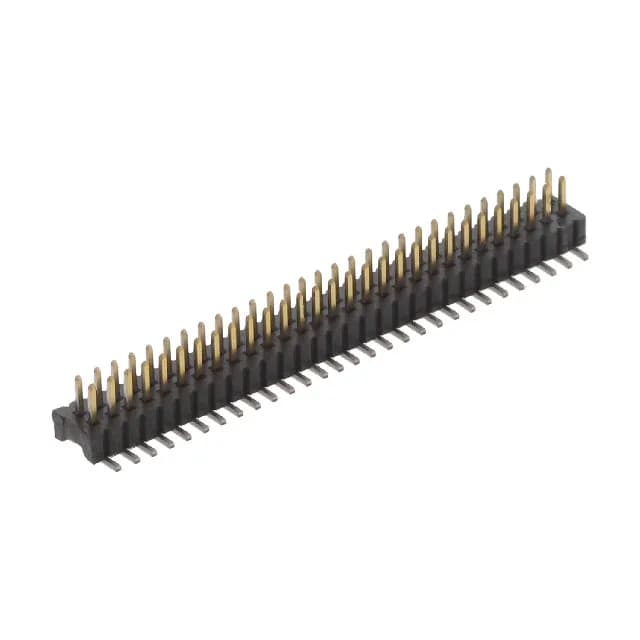

TE Connectivity AMP Connectors AMPMODU 1MM series, 1MM-HU-D29-VS-00-H-TBP, Board to Board, Header, Breakaway, 58 Positions, 2 Row, 1.00mm Pitch, Surface Mount, Solder, Gold Mating, 30.0µin (0.76µm), Tin Post, 1A, 30VAC, Unshrouded, Push-Pull, Black LCP, UL94 V-0, -55°C ~ 125°C.
| Parameter | Value |
|---|---|
| Series | AMPMODU 1MM |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 30VAC |
| Current rating | 1A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Box |
| Features | Pick and Place |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.039\" (1.00mm) |
| Positions | 58 |
| Row spacing - mating | 0.039\" (1.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.083\" (2.10mm) |
| Contact finish thickness - post | 12.0µin (0.30µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1MM-HU-D29-VS-00-H-TBP: Termination is solder to surface-mount pads — the header sits on the PCB without through-holes, freeing the opposite side for routing. The part ships in a box and includes pick-and-place features, so it feeds straight into an SMT line without manual handling.
The mating side is gold, 30 µinch, over nickel.
Yes, the series is RoHS compliant. The contact finishes (gold over nickel on mating, tin on post) are RoHS-compatible materials.
Surface mount. Termination is solder to SMT pads, and the part includes pick-and-place features for automated assembly.
