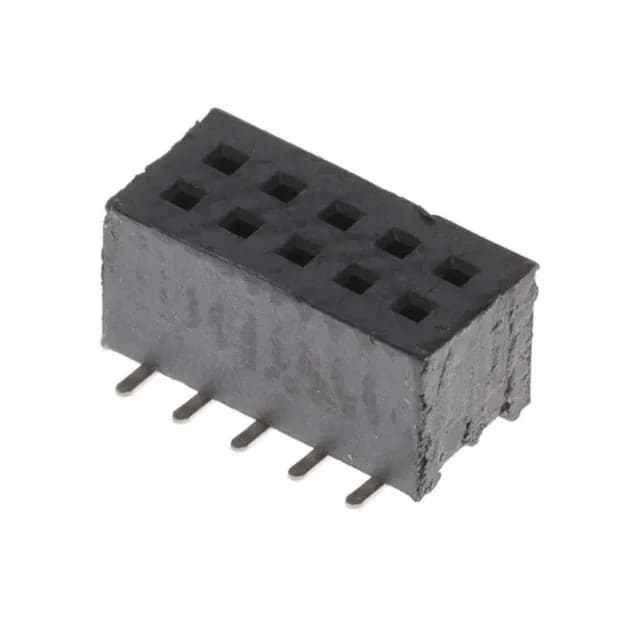

1.00 mm Pitch, 10-Position Board-to-Board Receptacle
Its 1.00 mm pitch and 3.00 mm insulation height set the mated stack height — a tight z-height budget for mezzanine or parallel-board layouts. The thin gold flash is suited for low-cycle connections — think one-time board assembly or infrequent field swap, not repeated reconnects.
Surface Mount Assembly and Pick-and-Place Ready
Terminated by solder to surface mount pads — no through-hole, so the board gets a clean bottom side with no tail protrusion. The part ships in a box and is marked with the Pick and Place feature, meaning the flat top surface and vacuum-pick area are compatible with automated assembly lines. The square contact shape mates with a square pin header of matching pitch.
ROHS3 Compliant per the manufacturer listing. The base product number is 1MM-R-D, which covers the series footprint for cross-referencing mating headers.
