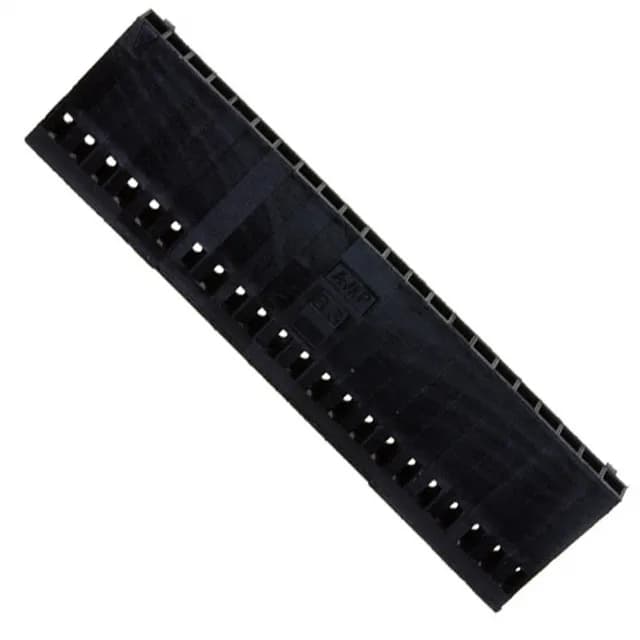

22-Position Single-Row Housing at 2.54 mm Pitch
The 2-102241-0: It accepts female socket crimp terminals and is designed for free-hanging (in-line) wire-to-board or wire-to-wire interconnects. The locking ramp fastening type provides positive retention in moderate-vibration environments — common in industrial control panels, automotive interior harnesses, and consumer appliance wiring. The housing is moulded in black thermoplastic rated for continuous operation from -65°C to 105°C, covering both cold-start and underhood ambient conditions.
Contacts Are Ordered Separately — Critical Sourcing Detail
The 2-102241-0 ships as a housing only — contacts are not included. The buyer must source the matching AMPMODU Mod IV female socket crimp terminals separately. This is a common point of confusion on the BOM: the housing line item covers the plastic body and locking ramp, but the crimp terminals (typically ordered as a reel or strip of loose pieces) are a distinct part number. Confirm the terminal part number for the wire gauge (22-28 AWG is typical for this series) before committing the assembly.
Locking Ramp and Free-Hanging Mount
For a free-hanging connector that sees cable strain or vibration, that ramp is the primary retention — no secondary lock or screw is needed. The single-row layout keeps the connector narrow, which helps when routing multiple wires through a tight cable duct or enclosure grommet.
