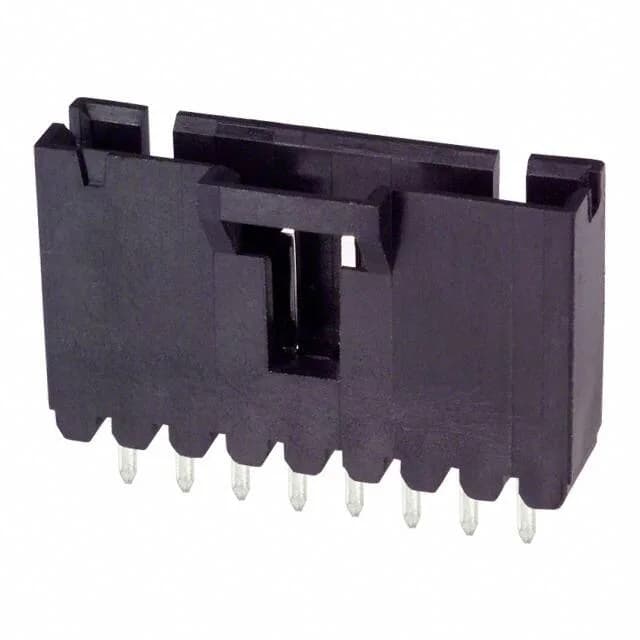

TE Connectivity AMPMODU MTE header, 2-103639-8, vertical through-hole, 8 positions, 0.100" (2.54 mm) pitch, shrouded 4-wall, latch holder, tin-plated contacts rated 3 A per contact, UL94 V-0 thermoplastic housing, -65°C to 105°C operating range.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 2-103639-8: Keying slot adds mis-mate protection when multiple headers sit side by side. The heavy tin layer supports moderate mating cycles — expect several hundred mates before wear-through, suitable for field-serviceable equipment.
The closest peer in the ledger is 1394090-1 — a 6-position, right-angle, 0.112" (2.85 mm) pitch header with tin contacts.
Confirm the mating half's position count — an 8-position receptacle is required.
Yes — the part is explicitly listed for automotive use. The latch holder and shrouding add vibration resistance.
