TE Connectivity AMP Connectors 2-1318116-3 — Connector Housings

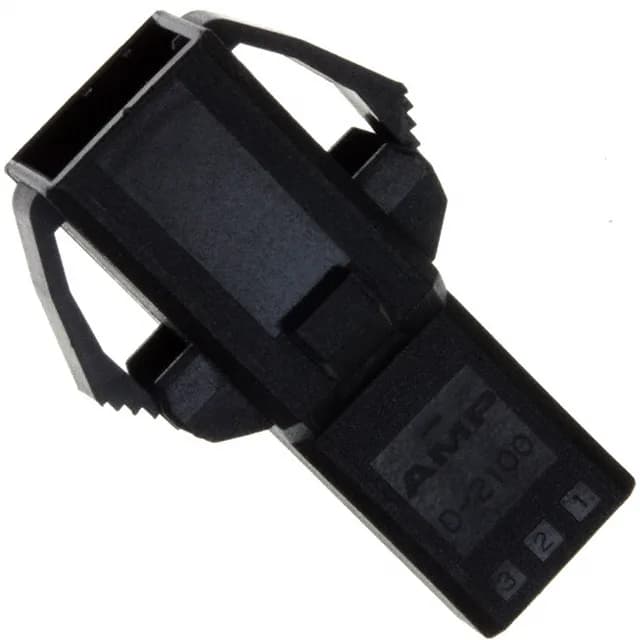

TE Dynamic D-2100 2-1318116-3 Plug Housing, 3 Pos, 2.50mm

MPN2-1318116-3
Active

TE Connectivity Dynamic D-2100 series, Plug Housing, 3 Position, 2.50mm Pitch, 1 Row, Male Pin, Crimp Termination, Panel Mount, Snap-In, Locking Ramp, Black, -55°C to 105°C, Contacts Not Included.

$1.0500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-1318116-3 datasheet (PDF)
RoHSRoHS Compliant
SeriesDynamic D-2100
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-1318116-3 specifications
ParameterValue
SeriesDynamic D-2100
TypeMale Pin
MountingPanel Mount, Snap-In
Connector typePlug
Fastening typeLocking Ramp
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialThermoplastic, Glass Filled
NoteContacts Not Included
Pitch0.098\" (2.50mm)
PackageBulk
FeaturesPolarizing Key
Rows1
Contact terminationCrimp
Positions3

Product details

3-Position Plug Housing for the Dynamic D-2100 Line

Pitch, Mount, and the Locking Ramp

At 2.50 mm pitch, this housing matches the Dynamic D-2100 receptacle footprint — the 3 positions fit a narrow board edge or inline splice. The snap-in panel mount means it seats into a rectangular cutout and stays put without hardware, which saves assembly time compared to a free-hanging plug.

Match the wire gauge to the terminal spec; the crimp tooling is standard TE hand or auto-feed. No contacts in the bag means you pick the plating (tin or gold) based on your mating cycle count and environment, not what the housing dictates.

Frequently asked questions

What contacts are compatible with 2-1318116-3?

The 2-1318116-3 accepts male pin crimp terminals from the Dynamic D-2100 series. Contacts are not included with the housing — order the matching crimp terminal separately, selecting the plating (tin or gold) that fits your mating cycle and environmental requirements.

What is the mating connector for 2-1318116-3?

The 2-1318116-3 is a plug housing that mates with the matching Dynamic D-2100 receptacle housing of the same 2.50 mm pitch and position count. The locking ramp on the plug engages the receptacle latch for a vibration-resistant connection.
