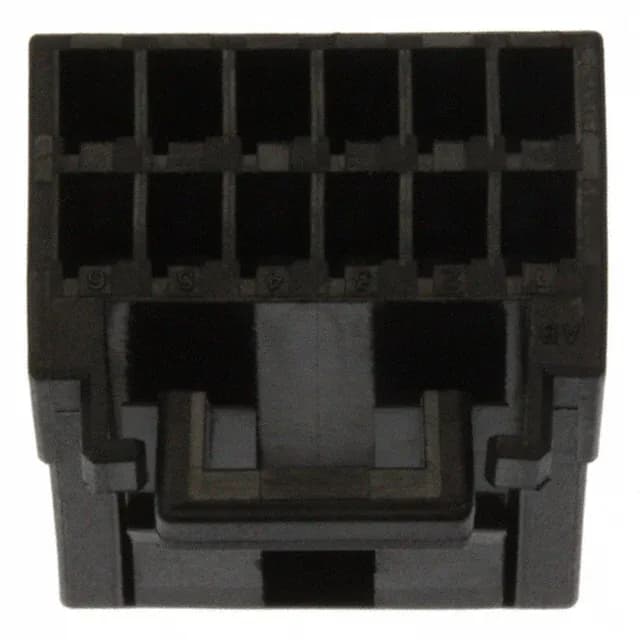

12-Position Receptacle Housing for Dynamic D-2100 Harnesses
The 2.50mm pitch and 3.75mm row spacing balance contact density with the creepage needed for the series' power-level current ratings. A polarizing key prevents mis-mating with the corresponding plug housing.
Contacts Ordered Separately — Critical BOM Detail
The crimp termination style allows the harness builder to select wire gauge and plating grade (tin vs. gold) independently of the housing, which is useful when the same housing is used across signal and power circuits within an assembly.
The 2-1318118-6 mates with the corresponding Dynamic D-2100 series plug housing (male pin side) at the same 2.50mm pitch and 2-row layout. For a complete mated pair, order the plug housing and the appropriate crimp contacts for both halves. The free-hanging design suits it for in-line harness splices or as the wire-end half of a wire-to-board connection when paired with a board-mounted header.
