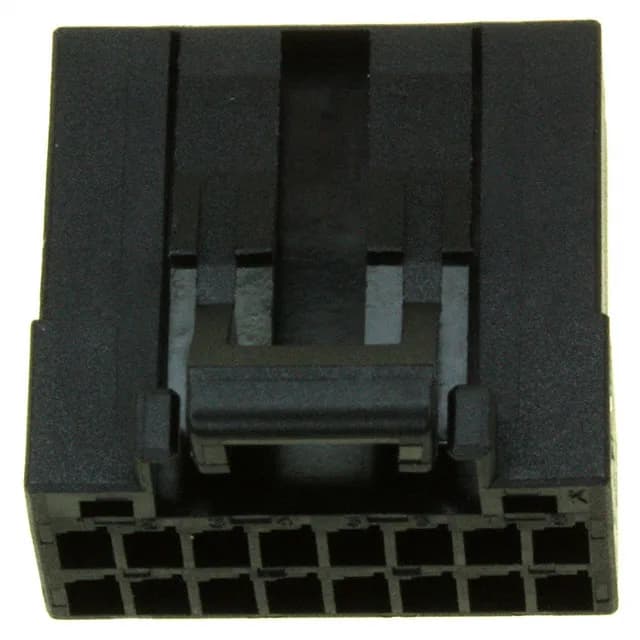

The 0.098" (2.50mm) pitch keeps the board footprint compact while the 0.148" (3.75mm) row spacing gives enough room between rows for routing traces or heavier wire gauges. The latch lock snaps audibly when fully mated, giving positive feedback that the connection is secure against vibration.
Wiring It Up — Contacts Are Not Included
For the Dynamic D-2100 series, the mating female socket contacts are ordered by wire gauge; typical choices cover 20-16 AWG for power circuits and 24-20 AWG for signal. The crimp tooling is the standard TE hand or pneumatic crimper for the D-2100 contact family. Free-hanging (in-line) mounting means this housing sits in the harness, not on the board. The latch lock holds it to the right-angle or vertical header on the PCB. No strain relief is built into the housing itself — plan for a cable tie or clamp near the connector exit if the harness sees flex or pull.
