TE Connectivity AMP Connectors 2-1318118-9 — Connector Housings

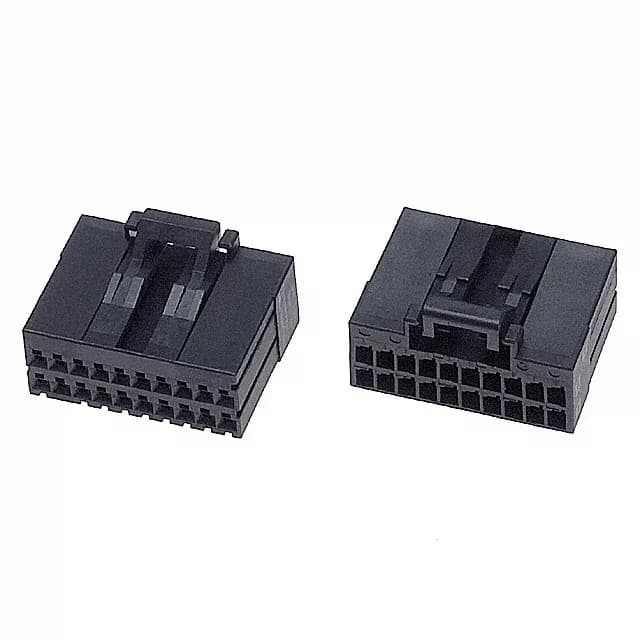

TE Dynamic D-2100 2-1318118-9, 20 Pos Receptacle

MPN2-1318118-9
Active

TE Connectivity Dynamic D-2100 receptacle housing, 2-1318118-9, 20 positions, 2 rows, 2.50mm pitch, 3.75mm row spacing, free-hanging, latch lock, crimp termination, black thermoplastic, -55°C to 105°C.

$1.7500Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDynamic D-2100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-1318118-9 specifications
ParameterValue
SeriesDynamic D-2100
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialThermoplastic, Glass Filled
NoteContacts Not Included
Pitch0.098\" (2.50mm)
PackageBulk
FeaturesPolarizing Key
Row spacing0.148\" (3.75mm)
Rows2
Contact terminationCrimp
Positions20

Product details

The TE Connectivity 2-1318118-9 is a 20-position, 2-row receptacle housing from the Dynamic D-2100 series, on a 2.50mm pitch with a 3.75mm row spacing. It's a free-hanging (in-line) crimp housing — you load your own female socket contacts into it, then mate it with the corresponding Dynamic D-2100 plug header. The latch lock snaps home to hold the pair together in a harness, and the polarizing key stops you from plugging it into the wrong position in a multi-connector assembly.

Contacts — You Order Them Separately

You need to buy the matching Dynamic D-2100 female crimp socket terminals separately and terminate them onto your wire before loading into the cavities. The crimp termination is standard for the series; pick the right wire gauge and terminal plating (tin or gold) for your current and cycle-life needs. No contacts in the bag means one more line item on the BOM, so factor that in when you're pricing out the assembly.

The mating plug for this 2-1318118-9 receptacle is a Dynamic D-2100 series plug header with the same 2.50mm pitch and 2-row layout — latch lock on the plug side engages with the receptacle's lock. If you're building a harness with multiple D-2100 connectors in the same bundle, the keying keeps each circuit going to the right place.

Frequently asked questions

What contacts are compatible with 2-1318118-9?

The 2-1318118-9 accepts Dynamic D-2100 series female socket crimp terminals — you order them separately. The housing is a receptacle shell only; no contacts are included. Select the terminal based on your wire gauge and plating requirement (tin for standard duty, gold for higher mating cycles).

What is the mating plug for 2-1318118-9?

The mating plug is a Dynamic D-2100 series plug header with the same 2.50mm pitch and 2-row configuration, featuring a latch lock that engages with this receptacle's lock. Look for a TE Dynamic D-2100 plug housing with matching position count and keying.

Where can I buy 2-1318118-9 available via RFQ confirmation?

This part is active and sourced to order.
