TE Connectivity AMP Connectors 2-1318119-3 — Connector Housings

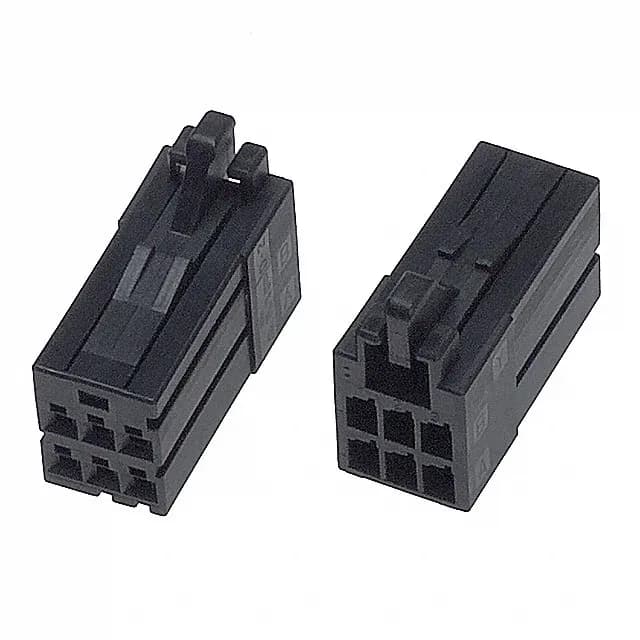

TE Dynamic D-2100 2-1318119-3, 6 Pos Receptacle Housing

MPN2-1318119-3
Active

TE Connectivity Dynamic D-2100 receptacle housing, 2-1318119-3, 6 positions, 2 rows, 0.098" (2.50mm) pitch, 0.148" (3.75mm) row spacing, crimp termination, latch lock, black thermoplastic, RoHS.

$1.0400Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDynamic D-2100
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-1318119-3 specifications
ParameterValue
SeriesDynamic D-2100
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialThermoplastic, Glass Filled
NoteContacts Not Included
Pitch0.098\" (2.50mm)
PackageBulk
Row spacing0.148\" (3.75mm)
Rows2
Contact terminationCrimp
Positions6

Product details

It's a free-hanging (in-line) crimp housing — a shell that holds the female socket contacts, not a finished connector. The 0.098" (2.50 mm) pitch and 0.148" (3.75 mm) row spacing are the standard D-2100 grid, and the latch lock on the sides gives a positive hold when mated with the matching plug housing.

This is a bare housing. Without those terminals, this is just an empty shell.

Mating Connector and Harness Fit

For a wire-to-wire or wire-to-board harness, you'd pair this receptacle with the appropriate D-2100 plug housing and crimp the matching terminals onto your wire ends. The 2-row, 6-position layout means three circuits per row.

Frequently asked questions

Does 2-1318119-3 include contacts?

No. The listing explicitly notes contacts are not included. You must order the Dynamic D-2100 female crimp socket terminals separately.

What is the mating connector for 2-1318119-3?

This receptacle housing mates with the Dynamic D-2100 plug header (male pin side) that has the same 6-position, 2-row, 2.50 mm pitch layout and latch lock feature.
