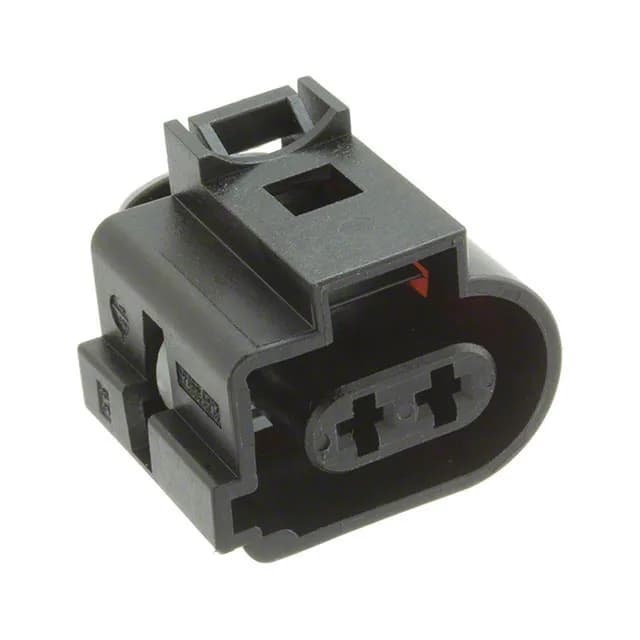

TE Connectivity MCP series receptacle housing, 2 positions, single row, 6.00 mm pitch, free-hanging (in-line), crimp termination, black PA66, latch holder fastening, contacts not included.
| Parameter | Value |
|---|---|
| Series | MCP |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Operating temperature | -30°C ~ 100°C |
| Color | Black |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.236\" (6.00mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 2 |
It uses a 6.00 mm pitch, which gives generous creepage for power or signal circuits and simplifies hand assembly.
This housing ships without contacts. The note on the line is explicit: Contacts Not Included.
For a sealed or high-vibration harness, confirm the header side also carries the latch feature.
No. The housing ships without contacts. You must order the MCP crimp socket terminals separately to populate the cavities.
It mates with a 2-position, 6.00 mm pitch MCP plug header that uses a latch holder fastening. The exact header part number depends on the termination style (crimp or PCB) and orientation needed for your harness.
