Termination and mounting details
Through-hole mounting with kinked pin solder tails (0.138 inch post length) provides mechanical retention during wave solder and resists pull-out forces from the cable assembly.

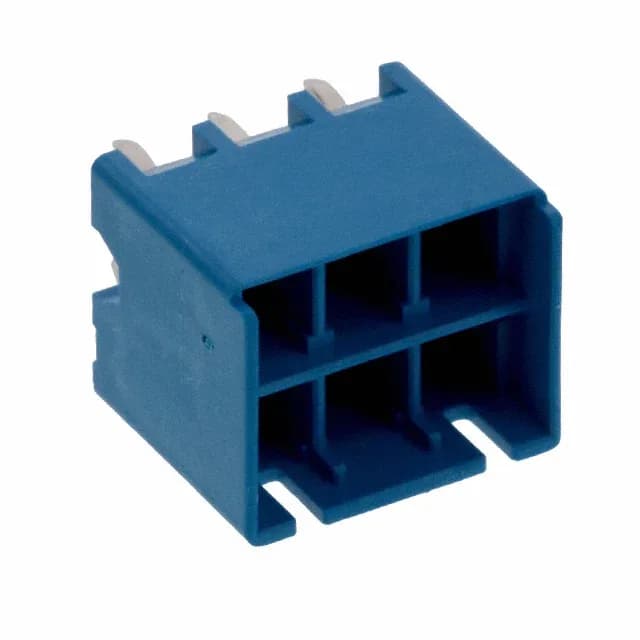

2-1376387-3 TE Power Key Header 6 Pos 5mm Pitch
MPN2-1376387-3
Active
TE Connectivity AMP Connectors Power Key series, 2-1376387-3, Board to Cable/Wire header, 6 circuits, 5.00 mm pitch, 2 rows, shrouded - 4 wall, locking ramp, through hole, kinked pin solder termination, tin contacts, UL94 V-0, -40°C to 105°C.
$1.4200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPower Key
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Power Key |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 300VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Blue |
| Insulation height | 0.555\" (14.10mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Mated stacking heights | 19.4mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 6 |
| Row spacing - mating | 0.244\" (6.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
What is the pitch and row spacing of 2-1376387-3?
The mating pitch is 0.197 inch (5.00 mm) with a row spacing of 0.244 inch (6.20 mm). This is a 2-row, 6-position header.
