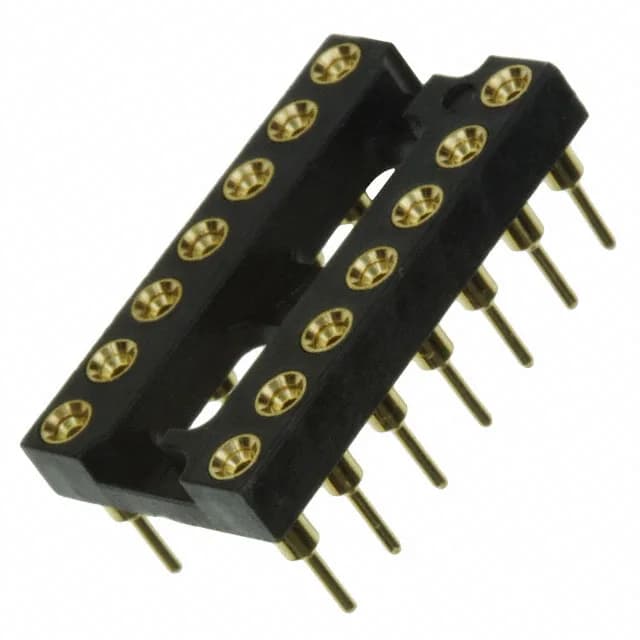

TE Connectivity AMP Connectors Series 800 DIP header, order code 2-1437537-1, 14 positions (2 x 7), 0.100" (2.54mm) pitch, 3 A, gold-plated mating contacts, through-hole solder termination, open-frame polyester housing.
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | 800 |
| Mounting | Through Hole |
| Current rating | 3 A |
| Operating temperature | -55°C~105°C |
| Housing material | Polyester |
| Contact material - mating | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - mating | 25.0µin (0.63µm) |
| Number of positions or pins | 14 (2 x 7) |
The 2-1437537-1 is listed as Obsolete by TE Connectivity AMP Connectors; no official pin-compatible successor is recorded under the base product number 1437537. Availability is limited to existing stock and surplus channels — confirm quantity and lead time at RFQ before committing to a BOM line.
Pricing and stock are confirmed per RFQ. Because the part is obsolete, quantities are limited to existing inventory and surplus channels — submit a request for current availability.
