The 2-1445050-6: The 3.00 mm pitch on this single-row 6-position header leaves enough room between pads to run a trace on a two-layer board without necking down the copper. Press-fit tails are listed alongside solder termination, so the same part can be used in a solderless backplane assembly or a conventional wave-solder process. The through-hole mounting gives mechanical strength even when the press-fit tail carries the current.

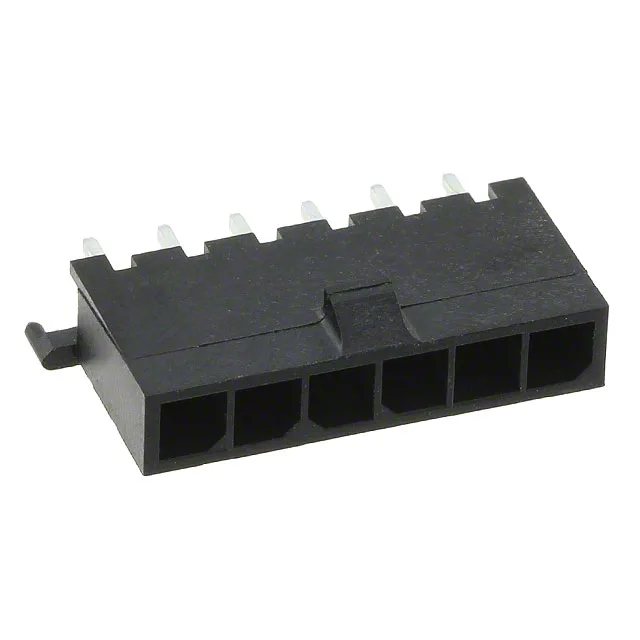

2-1445050-6 TE Connectivity Micro MATE-N-LOK Header 6 Pos
MPN2-1445050-6
Active
TE Connectivity AMP Connectors, Micro MATE-N-LOK series, header, 6 positions, 3.00 mm pitch, single row, shrouded 4-wall, locking ramp, press-fit and solder termination, through hole, tin plating, -40°C to 105°C, UL94 V-0, RoHS.
$1.5400Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMicro MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.364\" (9.25mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
Is 2-1445050-6 RoHS compliant?
Yes, it is RoHS compliant per the manufacturer's listing.
What is the closest pin-compatible alternative to 2-1445050-6 in the Micro MATE-N-LOK family?
Within the same series, the closest alternative by pin count is the 4-position or 8-position single-row header — same 3.00 mm pitch, same shrouding and locking ramp. No direct pin-compatible drop-in exists; changing pin count requires a board layout change.
