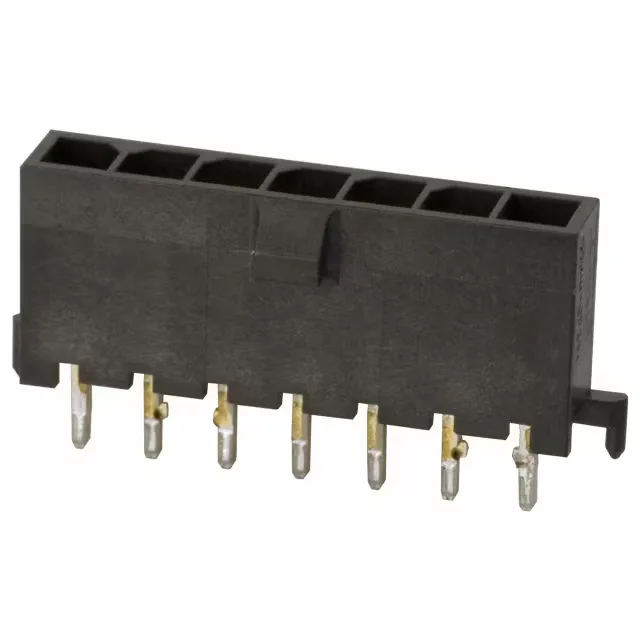

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 2-1445050-7, 7 positions, 3.00 mm pitch, single-row, shrouded, through-hole, press-fit/solder termination, locking ramp, UL94 V-0, -40°C~105°C.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.364\" (9.25mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 2-1445050-7: Shrouded with a 4-wall enclosure and a locking ramp — the ramp engages the mating receptacle latch to prevent back-out under vibration, a common failure mode in wire-to-board connections on moving assemblies.
Tin-plated mating contacts (100.0 µin thickness) provide adequate corrosion resistance for general-purpose indoor use; the tin post finish (100.0 µin) ensures reliable solder wetting.
No pin-compatible alternative is recorded for this exact order code. The Micro MATE-N-LOK series includes other position counts and row configurations; verify the mating half and board layout before substituting.
