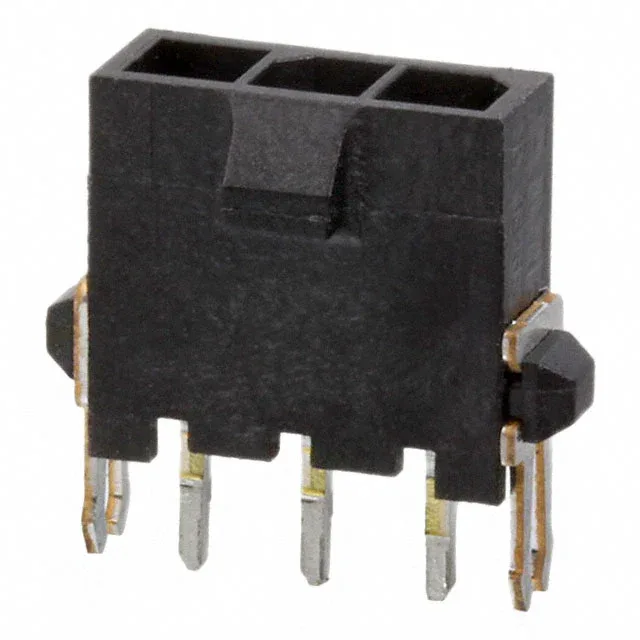

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 2-1445051-3, 3 circuits, 3.00mm pitch, single row, through-hole, shrouded, tin-plated contacts, board lock, locking ramp, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.364\" (9.25mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 2-1445051-3: This is a 3-circuit, single-row, through-hole header from the Micro MATE-N-LOK series.
Both the mating and post contact finishes are 100.0 µinch tin over brass.
The product status is Active with ROHS3 compliance.
2-1445051-3 is sourced to order through independent distribution. Submit an RFQ for current availability and pricing – no stock-holding claim is made here.
This header mates with a Micro MATE-N-LOK receptacle housing (e.g., 3-position, single-row) and the corresponding crimp terminals. The locking ramp on the header engages the latch on the receptacle.
Yes, it is ROHS3 compliant.
