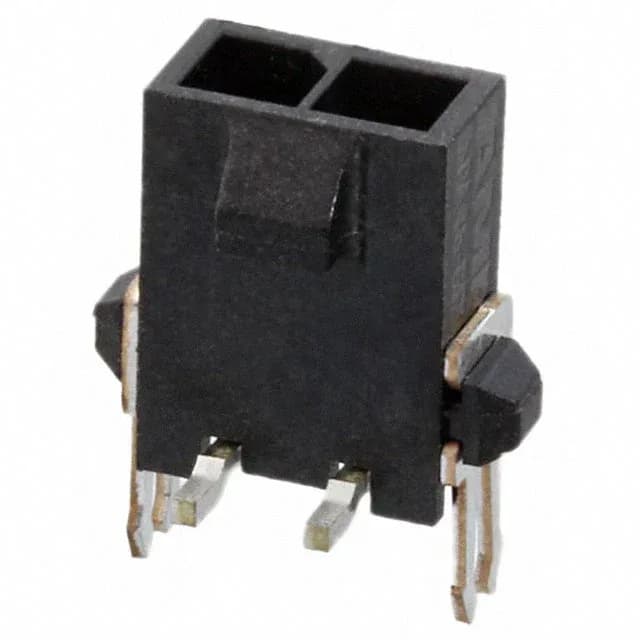

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 2-1445052-2, 2-position single-row SMT, 3.00mm pitch, shrouded 4-wall, locking ramp, tin-plated contacts, board lock, -40°C to 105°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.364\" (9.25mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Lock, Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The tin-plated contacts (100.0µin thickness) handle repeated mating cycles without galling in moderate-duty signal circuits.
The pick-and-place cap allows vacuum pickup for high-speed placement machines, reducing handling time on the line.
This header mates with the Micro MATE-N-LOK receptacle housing (e.g., 1-1445052-2 or similar single-row 2-position receptacle) and uses the matching crimp terminals. The locking ramp on the header engages the latch on the receptacle for a vibration-resistant connection.
The current rating for this header varies by wire gauge used in the mating receptacle.
