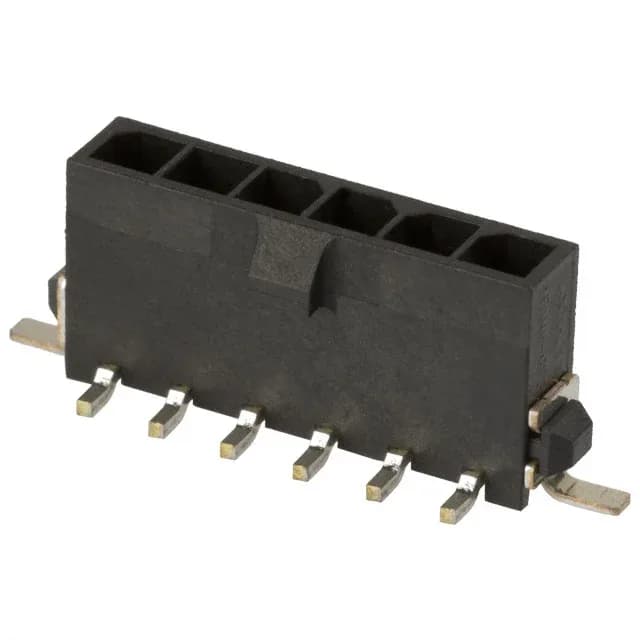

6-Position SMD Header with Locking Ramp
The 2-1445053-6 is a 6-position, single-row, surface-mount header in TE's Micro MATE-N-LOK series. The 3.00 mm pitch and shrouded 4-wall design guide the mating housing into alignment, reducing the risk of bent pins during assembly.
SMD Termination and Assembly Features
The insulation is black polyamide (PA) nylon rated UL94 V-0. Contact finish is 100.0 µin (2.54 µm) tin on both the mating surface and the post, suitable for moderate mating cycles in a general-purpose environment.
