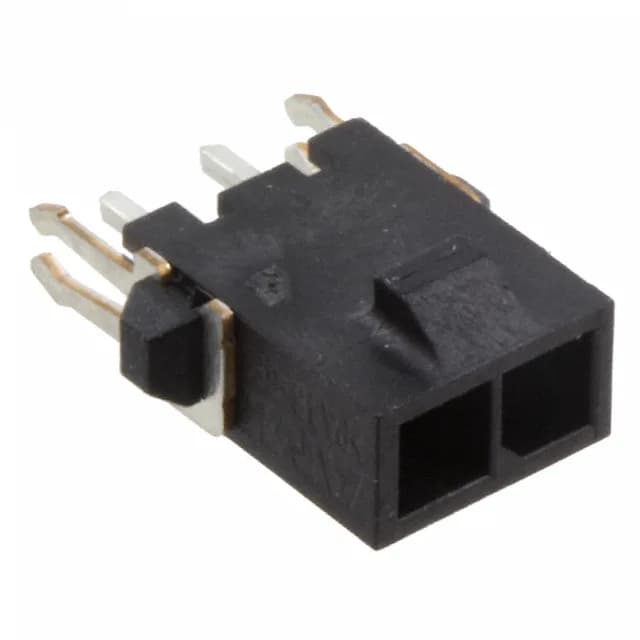

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 2-1445085-2, Board to Cable/Wire style, 2 positions, 0.118" (3.00mm) pitch, shrouded - 4 wall, locking ramp, board lock, through-hole solder, gold mating finish, UL94 V-0
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.364\" (9.25mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
It mates with the corresponding wire-to-board receptacle to form a Board to Cable/Wire interconnect.
The 2-1445085-2 shares the same 3.00mm pitch, shrouding, locking ramp, board lock, gold plating, and UL94 V-0 rating as the 3-position (2-1445085-3) and 6-position (2-1445085-6) variants.
The 2-1445085-2 is a header that mates with a Micro MATE-N-LOK receptacle housing and crimp terminals. The specific receptacle part number depends on the wire gauge and circuit count required.
