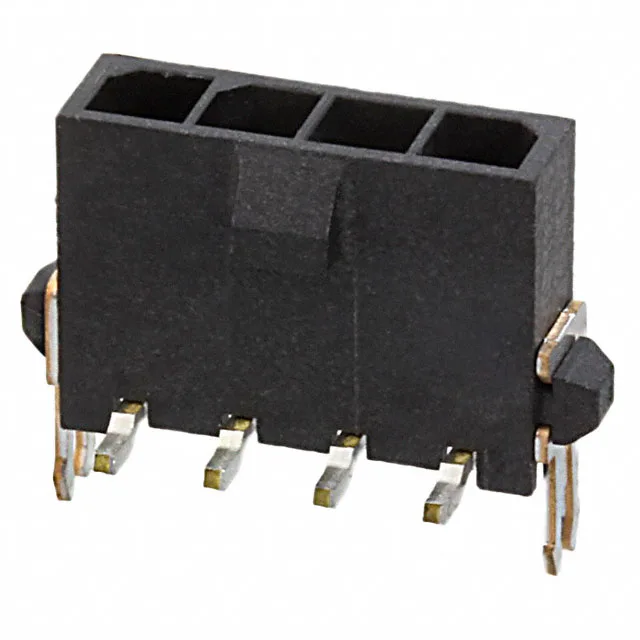

TE Connectivity Micro MATE-N-LOK header, 2-1445086-4, 4-position single-row, 3.00mm pitch, SMT, shrouded with locking ramp, gold mating finish, board lock, pick-and-place, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.364\" (9.25mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Lock, Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The post finish is tin at 100.0 µin. These two specs together cover most indoor and outdoor enclosures where the connector lives inside a panel.
It also has a pick-and-place feature, meaning the flat top surface is compatible with vacuum nozzles for automated placement. The contact is a square male pin, brass, soldered to the board.
Submit an RFQ for current pricing and lead time — we do not maintain on-shelf stock, but we can source it from the supply chain on your behalf.
The 2-1445086-4 mates with a Micro MATE-N-LOK receptacle housing (wire-to-board) that accepts the matching crimp terminals. The locking ramp on the header engages with the latch on the receptacle. Confirm the circuit count and wire gauge on your receptacle side.
Yes, the 2-1445086-4 is RoHS compliant. The contact finish is tin on the post and gold on the mating surface, both RoHS-compatible platings.
