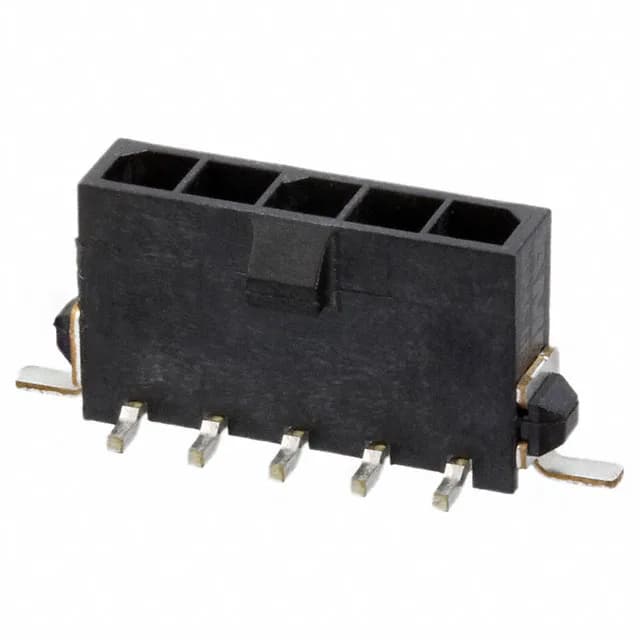

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 2-1445087-5, SMD, 5 positions, 3.00mm pitch, shrouded 4-wall, locking ramp, gold-plated mating contacts, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.364\" (9.25mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 2-1445087-5 is a 5-position, single-row, surface-mount header from the Micro MATE-N-LOK series.
The 2-1445087-6 is the 6-position version of the same header — identical pitch, plating, locking ramp, and SMD footprint.
This header mates with a Micro MATE-N-LOK receptacle housing (e.g., 2-1445087-6 is the 6-position sibling, but the 5-position receptacle housing is the correct mate). Use the matching crimp terminal for your wire gauge.
Yes, the header has a locking ramp that engages with the receptacle latch for a secure, vibration-resistant connection.
The closest functional alternative is the 6-position sibling 2-1445087-6, which shares the same pitch, plating, and locking ramp. For a 5-position match, stick with this exact order code.
