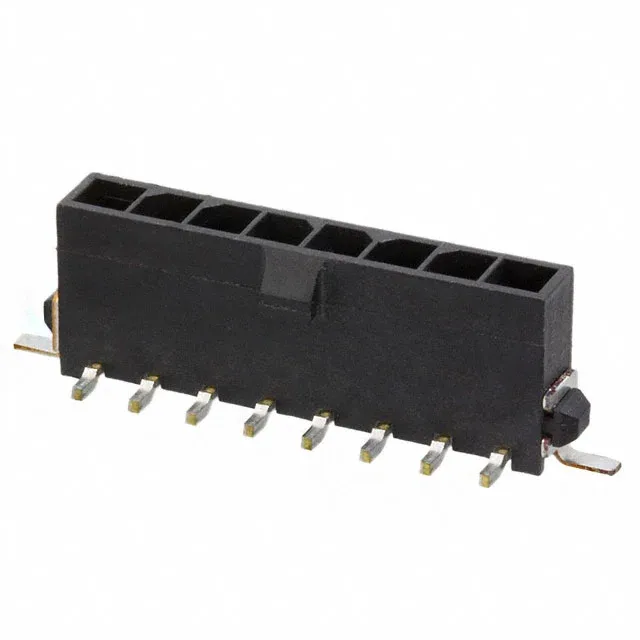

2-1445087-8 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

2-1445087-8 TE Micro MATE-N-LOK Header SMD 8 Pos 3mm

MPN2-1445087-8
Active

TE Connectivity AMP Connectors Micro MATE-N-LOK, Header, Surface Mount, Solder, 8 Positions, 0.118" (3.00mm) Pitch, Shrouded - 4 Wall, Locking Ramp, Gold Mating Finish, Tin Post, UL94 V-0, ROHS3 Compliant, Active

$2.2470Ref. price · indicative, final on quote
2-1445087-8 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

2-1445087-8 Technical Specifications
ParameterValue
SeriesMicro MATE-N-LOK
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C~105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.364\" (9.25mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesPick and Place, Solder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.118\" (3.00mm)
Positions8
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

SMD Header for Wire-to-Board Duty

SMT Assembly and Board Fit

The header includes pick-and-place features and solder retention, which means it is designed for automated surface-mount assembly: the vacuum pickup pad aligns the part on the nozzle, and the solder retention holds the header in place on the board during reflow.

The 2-1445087-8 is SMD, straight, with gold mating finish and 8 positions — a different board placement and a higher cycle-life contact interface. The 1-292164-1 from the CT series uses 2.00 mm pitch and 11 positions — a finer pitch and higher circuit count, but a different mating interface and latch style. None of these peers are pin-compatible with the 2-1445087-8 without a board layout change.

Frequently asked questions

Is 2-1445087-8 RoHS compliant?

Yes, it is ROHS3 compliant.

What is the mating connector for 2-1445087-8?

The specific housing part number depends on the wire gauge and circuit count; the Micro MATE-N-LOK series includes several receptacle housings and terminal options.

Are there any equivalent parts to 2-1445087-8?

The closest peer, 1394090-1, is a through-hole right-angle version with tin finish and 6 positions — a different board footprint and mating cycle profile. A board layout change would be required to use it.

How can I order 2-1445087-8 or check stock?

Availability and current pricing confirmed at quote time — submit an RFQ for this part number.
