For a BOM that needs a drop-in replacement, the same Micro MATE-N-LOK series includes active 7-position headers with the same 3.00 mm pitch and locking ramp — confirm the board lock and right-angle orientation match your layout before ordering.

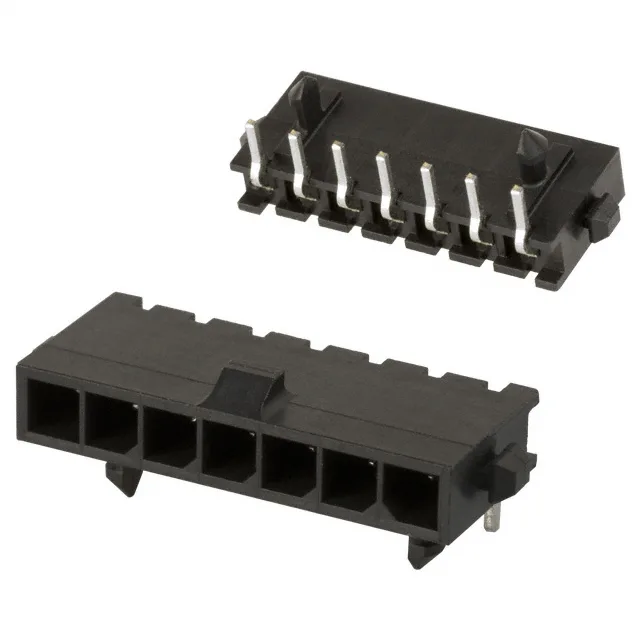

2-1445089-7 TE Micro MATE-N-LOK Header 7 Pos 3.00mm Right
MPN2-1445089-7
Obsolete
TE Connectivity AMP Connectors Micro MATE-N-LOK header, 7 circuits, 3.00 mm pitch, through-hole right-angle, shrouded 4-wall, locking ramp, gold-plated mating contacts, board lock, UL94 V-0.
$0.5300Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.152\" (3.85mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What is the replacement for 2-1445089-7?
No official replacement part number is published by TE Connectivity. The Micro MATE-N-LOK series includes active 7-position, 3.00 mm pitch headers with the same locking ramp and right-angle orientation — verify the board lock feature and post length match your PCB before substituting.
Does 2-1445089-7 mate with standard Micro MATE-N-LOK receptacles?
Yes. This header is designed to mate with Micro MATE-N-LOK receptacle housings that accept the corresponding crimp terminals.
