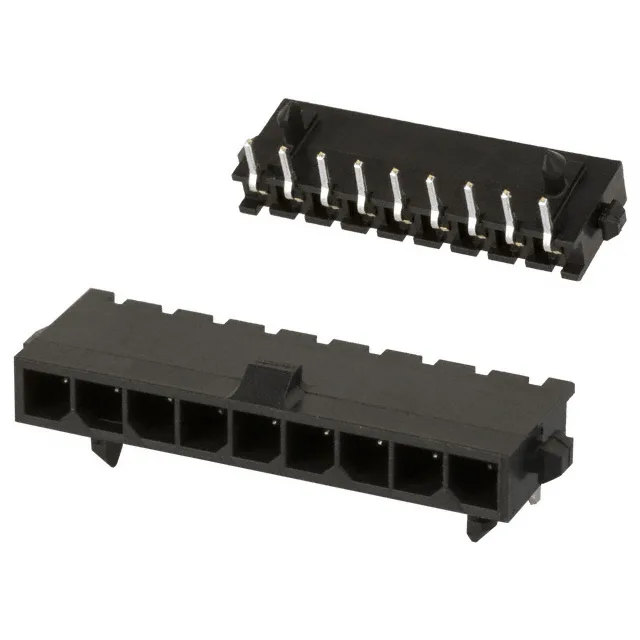

TE Connectivity AMP Connectors Micro MATE-N-LOK header, order code 2-1445089-9, 9 positions, single row, 0.118" (3.00mm) pitch, 250V, gold-plated mating contacts, through-hole right-angle, solder termination.
TE 2-1445089-9 Micro MATE-N-LOK Header, 9 Pos, Obsolete
MPN2-1445089-9
Obsolete
TE Connectivity AMP Connectors Micro MATE-N-LOK header, order code 2-1445089-9, 9 positions, single row, 0.118" (3.00mm) pitch, 250V, gold-plated mating contacts, through-hole right-angle, solder termination.
$1.7857Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.152\" (3.85mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 9 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
