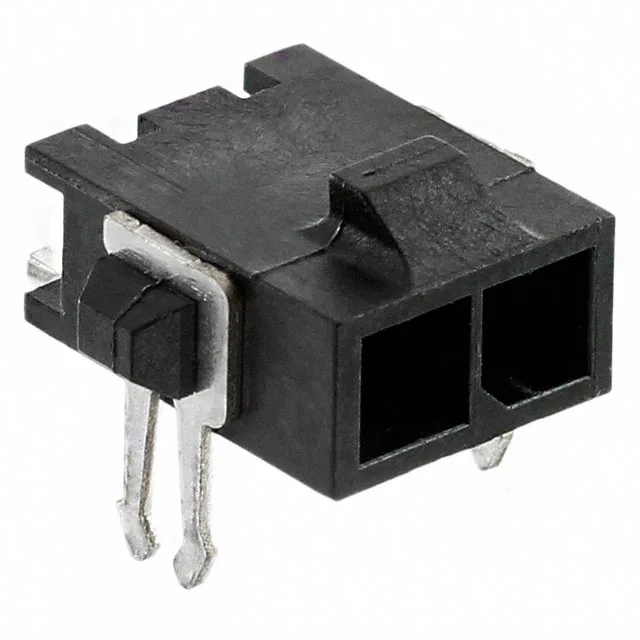

2-1445090-2 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 2-1445090-2 Micro MATE-N-LOK Header, 2 Pos, 3.00mm

MPN2-1445090-2
Obsolete

TE Connectivity AMP Connectors Micro MATE-N-LOK header, order code 2-1445090-2, 2 positions, single row, 3.00 mm pitch, 250 V, gold-plated mating contacts, surface-mount right-angle, solder termination, shrouded - 4 wall, board lock.

$1.7600Ref. price · indicative, final on quote
2-1445090-2 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

2-1445090-2 Technical Specifications
ParameterValue
SeriesMicro MATE-N-LOK
GenderMale Pin
Mounting typeSurface Mount, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.152\" (3.85mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR)
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.118\" (3.00mm)
Positions2
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Right-angle shrouded header, 2 circuits

The 2-1445090-2 is the 2-circuit member of TE's Micro MATE-N-LOK header line, a board-to-cable/wire connector with a shrouded 4-wall housing and locking ramp fastening. It mounts surface-mount right-angle, carries gold-plated mating contacts rated 250 V, and includes a board lock for SMT retention during reflow.

Obsolete — sourcing guidance

The 2-1445090-2 is listed as Obsolete by TE Connectivity AMP Connectors. A board spin is required for any functional replacement.

Frequently asked questions

What is the closest pin-compatible alternative to the 2-1445090-2 in the Micro MATE-N-LOK family?

A board spin is required for any functional replacement.

What compliance documentation does TE Connectivity AMP Connectors provide for the 2-1445090-2?

Contact material is brass with gold-plated mating surface and tin-plated post. Operating temperature range is -40°C to 105°C.
