Wire-to-board header for harness assembly

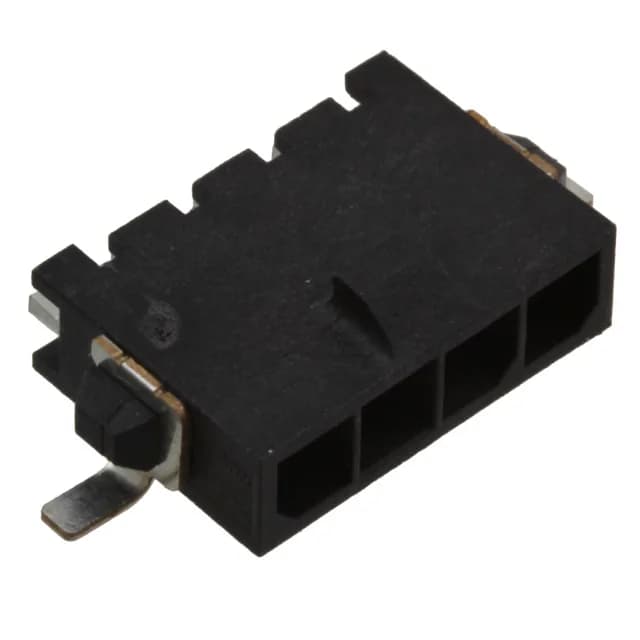

The 2-1445091-4 is a 4-position, single-row, surface-mount right-angle header from the Micro MATE-N-LOK series, designed for board-to-cable/wire applications. Its 3.00mm pitch and shrouded 4-wall housing guide the mating connector into alignment, and the locking ramp provides positive retention against vibration. The mating contacts are gold-plated (15.0µin), which supports repeated mating cycles and resists corrosion in environments where the connector may be unmated and remated during service. Rated for operating temperatures from -40°C to 105°C, the header suits equipment that sees thermal cycling, such as industrial controls or automotive interior modules.
SMD right-angle footprint and solder retention
The header mounts with surface-mount solder tails on a right-angle orientation, meaning the mated cable exits parallel to the PCB. Solder retention features on the housing help hold the part in place during reflow. The 3.00mm pitch allows for reasonable routing density on a two-layer board; the 0.152-inch (3.85mm) insulation height gives clearance for the mating housing latch.
Active production and sourcing posture
Available in Tape & Reel (TR) or Cut Tape (CT) packaging for automated or prototype assembly.
