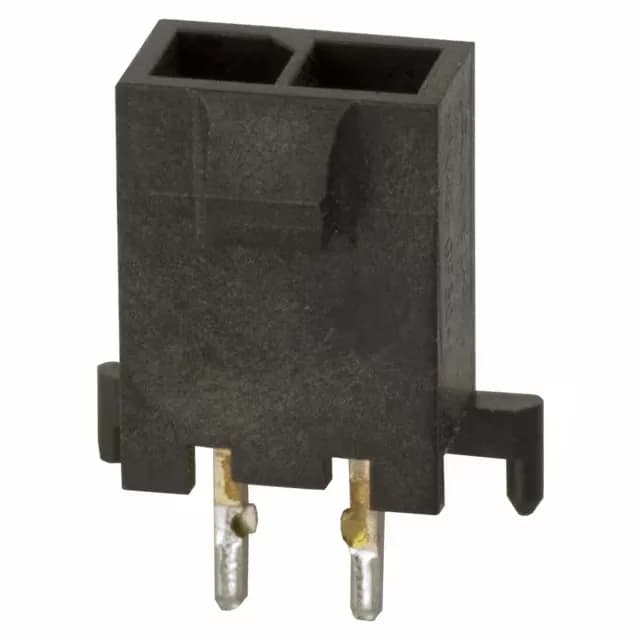

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 2 circuits, 3.00 mm pitch, vertical through-hole, shrouded 4-wall, locking ramp, gold-plated mating contacts, 250 V rating, UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.364\" (9.25mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 2-1445093-2: The tin-plated solder tails handle the wave-solder or press-fit termination without issue. If it backs out under vibration, it's scrap; the ramp prevents that.
RoHS compliant.
The termination is listed as press-fit or solder – the press-fit option suits backplane or solderless assembly where rework is a consideration.
The mating pitch is 0.118 inches (3.00 mm). This header mates with any Micro MATE-N-LOK receptacle housing that has a 2-circuit, 3.00 mm pitch layout.
