Board-to-wire header with press-fit option

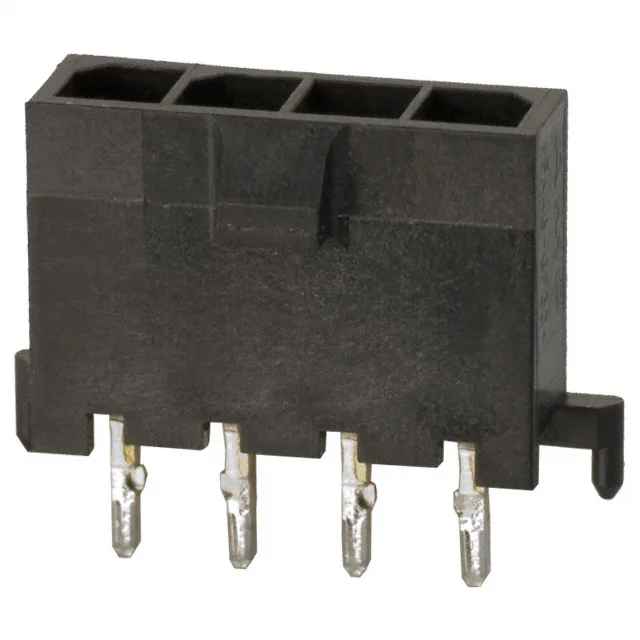

The 2-1445093-4 is a 4-position, single-row header from the Micro MATE-N-LOK series, designed for board-to-cable/wire connections. The shrouded 4-wall design protects the male pins during handling and guides the mating housing into alignment, reducing the risk of bent contacts during assembly.
Termination and contact details
This header supports both press-fit and solder termination — the press-fit option allows solderless assembly into plated through-holes, which can simplify rework and reduce thermal stress on the board. The contact material is brass with a square male pin shape, and all 4 positions are loaded.
Environmental and sourcing status
The voltage rating is 250 V, and the current rating varies by wire gauge — the limiting factor is the crimp terminal and wire size, not the header itself.
Mating connector and cross-reference note
This header mates with the Micro MATE-N-LOK receptacle housing using the corresponding crimp terminals. The locking ramp on the header engages the latch on the receptacle for a secure connection.
